Catálogo de acero

Trece familias con las dos tablas que se piden en el día: las propiedades de sección del IMCA, para diseñar, y el surtido que manejamos —calibre, largo, piezas por paquete, peso por hoja— para cotizar. Todo buscable y legible desde el celular en obra.

Familias: 13
Tablas: 27
Renglones: 1,270

Perfil estructural

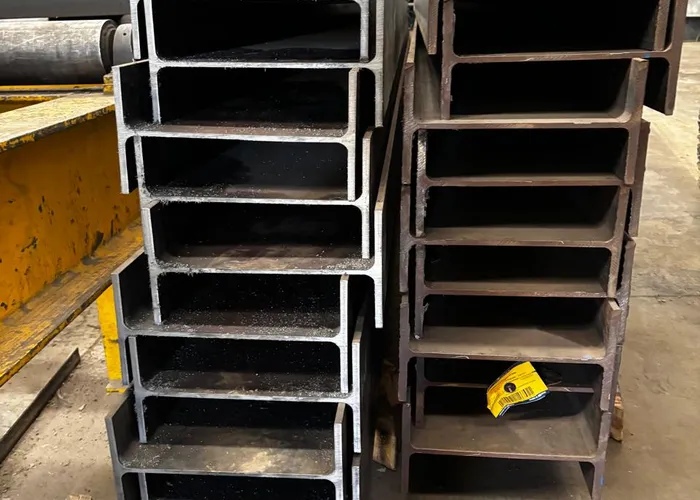

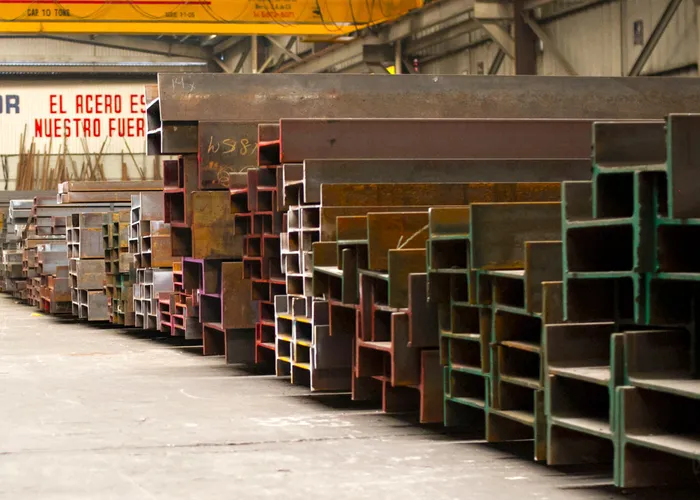

Viga IPR

Perfil I de patín ancho. La columna y la trabe de la nave.

Grados: ASTM A992 · ASTM A572 Gr. 50 · ASTM A36
Largo: 6.10 · 9.15 · 12.20 m
Renglones: 359 en 2 tablas

Propiedades de sección · IMCA

IPR / viga de patín ancho

Buscar medida

PERFIL I RECTANGULAR — 183 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	d mm	tw mm	bf mm	tf mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm	Zx cm³
102 × 19.4	4 × 13	19.4	24.7	106	7.1	103	8.8	470	89	4.40	161	31	2.50	103
127 × 23.7	5 × 16	23.7	—	—	—	—	—	887	140	5.40	313	49	3.20	157
127 × 28.1	5 × 19	28.1	35.7	131	6.9	128	10.9	1,091	167	5.50	380	60	3.30	190
152 × 13.6	6 × 9	13.6	17.3	150	4.3	100	5.5	683	91	6.30	91	18	2.30	102
152 × 18.0	6 × 12	18	22.9	153	5.8	102	7.1	920	120	6.30	124	25	2.30	136
152 × 24.0	6 × 16	24	30.6	160	6.6	102	10.3	1,336	167	6.60	184	36	2.50	192
152 × 22.4	6 × 15	22.4	28.6	152	5.8	152	6.6	1,211	159	6.50	388	51	3.70	177
152 × 29.7	6 × 20	29.7	37.9	157	6.6	153	9.3	1,723	220	6.80	554	72	3.80	244
152 × 37.2	6 × 25	37.2	47.4	162	8.1	154	11.6	2,223	274	6.90	712	92	3.90	310
203 × 15.0	8 × 10	15	19.1	200	4.3	100	5.2	1,282	128	8.20	87	17	2.10	145
203 × 19.4	8 × 13	19.4	24.8	203	5.8	102	6.5	1,648	162	8.20	114	22	2.10	187
203 × 22.5	8 × 15	22.5	28.6	206	6.2	102	8	1,998	193	8.40	142	28	2.20	223
203 × 26.6	8 × 18	26.6	33.9	207	5.8	133	8.4	2,576	249	8.70	332	50	3.10	279
203 × 31.2	8 × 21	31.2	39.7	210	6.4	134	10.2	3,134	298	8.90	407	61	3.20	334
203 × 35.9	8 × 24	35.9	45.7	201	6.2	165	10.2	3,446	342	8.70	762	92	4.10	380
203 × 41.8	8 × 28	41.8	53.2	205	7.2	166	11.8	4,079	398	8.80	903	109	4.10	446
203 × 46.2	8 × 31	46.2	58.9	203	7.2	203	11	4,579	451	8.80	1,544	152	5.10	498
203 × 52.2	8 × 35	52.2	66.5	206	7.9	204	12.6	5,286	511	8.90	1,773	174	5.20	569
203 × 59.3	8 × 40	59.3	75.5	210	9.1	205	14.2	6,077	582	9.00	2,044	200	5.20	652
203 × 71.4	8 × 48	71.4	91	216	10.2	206	17.4	7,659	710	9.20	2,535	246	5.30	803
203 × 86.6	8 × 58	86.6	110.3	222	13	209	20.6	9,490	852	9.30	3,126	300	5.30	980
203 × 99.8	8 × 67	99.8	127.1	229	14.5	210	23.7	11,321	990	9.40	3,688	351	5.40	1,150
254 × 17.9	10 × 12	17.9	22.8	251	4.8	101	5.3	2,239	179	9.90	91	18	2.00	206
254 × 22.3	10 × 15	22.3	28.5	254	5.8	102	6.9	2,686	226	10	120	24	2.10	262
254 × 25.3	10 × 17	25.3	32.2	257	6.1	102	8.4	3,409	265	10.3	148	29	2.10	306
254 × 28.5	10 × 19	28.5	36.3	260	6.4	102	10	4,008	308	10.5	176	35	2.20	354
254 × 32.9	10 × 22	32.9	41.9	258	6.1	146	9.1	4,912	380	10.8	475	65	3.40	426
254 × 38.5	10 × 26	38.5	49.1	262	6.6	147	11.2	5,994	457	11	587	80	3.50	513
254 × 44.8	10 × 30	44.8	57	266	7.6	148	13	7,076	531	11.1	695	94	3.50	600
254 × 49.2	10 × 33	49.2	62.6	247	7.4	202	11	7,076	574	10.6	1,523	151	4.90	636
254 × 58.2	10 × 39	58.2	74.2	252	8	203	13.5	8,699	690	10.8	1,873	185	5.00	767
254 × 67.4	10 × 45	67.4	85.8	—	—	—	—	10,323	805	11	2,223	218	5.10	900
254 × 72.9	10 × 49	72.9	92.9	—	8.6	254	14.2	11,321	895	11	3,888	306	6.50	990
254 × 80.00	—	80	101.9	—	9.4	255	15.6	12,612	983	11.1	4,287	338	6.50	1,091
254 × 89.1	—	89.1	113.6	—	10.7	256	17.3	14,193	1,093	11.2	4,828	377	6.50	1,222
254 × 101.3	—	101.3	129	—	11.9	257	19	16,400	1,240	11.3	5,577	433	6.60	1,398
254 × 114.5	—	114.5	145.8	—	13.5	259	22.1	18,938	1,408	11.4	6,410	493	6.60	1,600
254 × 131.2	—	131.2	167.1	—	15.4	261	25.1	22,227	1,614	11.5	7,451	570	6.70	1,851
254 × 148.9	—	148.9	189.7	—	17.3	263	28.4	25,931	1,835	11.7	8,616	655	6.70	2,130
254 × 166.6	—	166.6	212.3	—	19.2	265	31.8	29,802	2,065	11.8	9,823	742	6.80	2,409
305 × 21.10	12 × 14	21.1	26.8	303	5	101	5.7	3,688	244	11.7	98	20	1.90	285
305 × 23.90	12 × 16	23.9	30.4	305	5.6	101	6.7	4,287	280	11.9	117	23	2.00	329
305 × 28.20	12 × 19	28.2	—	—	—	—	—	5,411	349	12.2	157	31	2.10	405
305 × 32.80	12 × 22	32.8	41.8	313	6.6	102	10.8	6,493	416	12.5	194	38	2.20	480
305 × 38.70	12 × 26	38.7	49.4	310	5.8	165	9.7	8,491	547	13.1	720	88	3.80	610
305 × 44.50	12 × 30	44.5	56.7	313	6.6	166	11.2	9,906	633	13.2	845	102	3.90	706
305 × 52.20	12 × 35	52.2	66.5	318	7.6	167	13.2	11,863	747	13.3	1,020	122	3.90	839
305 × 59.80	12 × 40	59.8	76.1	303	7.5	203	13.1	12,903	850	13	1,836	180	4.90	942
305 × 66.90	12 × 45	66.9	85.2	306	8.5	204	14.6	14,568	952	13.1	2,081	203	4.90	1,060
305 × 74.40	12 × 50	74.4	94.8	310	9.4	205	16.3	16,400	1,060	13.2	2,343	228	5.00	1,186
305 × 79.00	12 × 53	79	100.7	—	8.8	254	14.6	17,690	1,157	13.3	3,987	315	6.30	1,277
305 × 86.10	—	86.1	109.7	—	9.1	254	16.3	19,771	1,278	13.4	4,454	351	6.40	1,416
305 × 96.70	12 × 65	96.7	123.2	—	9.9	305	15.4	22,185	1,440	13.4	7,242	477	7.70	1,586
305 × 106.70	—	106.9	136.1	—	10.9	306	17	24,850	1,596	13.5	8,116	531	7.70	1,770
305 × 117.50	—	117.5	149.7	—	11.9	307	18.7	27,554	1,753	13.6	8,991	587	7.70	1,950
305 × 129.70	—	129.7	165.2	—	13.1	308	20.6	30,801	1,934	13.7	10,031	651	7.80	2,163
305 × 142.80	—	142.8	181.9	—	14	309	22.9	34,672	2,147	13.8	11,238	728	7.80	2,409
305 × 158.00	—	158	201.3	—	15.5	310	25.1	38,834	2,376	13.9	12,529	808	7.90	2,687
305 × 178.80	—	178.8	227.8	—	18	312	28.1	44,537	2,671	14	14,360	920	8.00	3,048
305 × 202.10	—	202.1	257.4	—	20.1	315	31.8	51,613	3,048	14.2	16,566	1,052	8.00	3,507
305 × 226.40	—	226.4	288.4	—	22.1	317	35.6	59,521	3,425	14.4	18,897	1,193	8.10	3,982
305 × 253.20	—	253.2	322.6	—	24.4	319	39.6	68,678	3,851	14.6	21,519	1,349	8.20	4,506
305 × 282.60	—	282.6	360	—	26.9	322	44.1	78,667	4,310	14.8	24,516	1,524	8.30	5,096
305 × 313.00	—	313	398.7	—	30	325	48.3	89,073	4,785	15	27,638	1,704	8.30	5,703
305 × 342.90	—	342.9	436.8	—	32.6	328	52.6	100,000	5,260	15.2	30,884	1,885	8.40	6,325
356 × 32.9	14 × 22	32.9	41.9	349	5.8	127	8.5	8,283	475	14.1	291	46	2.60	544
356 × 38.9	14 × 26	38.9	49.6	353	6.4	128	10.7	10,198	578	14.4	371	58	2.70	659
356 × 44.8	14 × 30	44.8	57.1	—	6.9	171	9.8	12,112	688	14.6	816	95	3.80	775
356 × 50.6	14 × 34	50.6	64.5	355	7.2	171	11.6	14,152	796	14.8	970	113	3.90	895
356 × 56.7	14 × 38	56.7	72.3	358	7.9	172	13.1	16,025	895	14.9	1,111	129	3.90	1,008
356 × 63.8	14 × 43	63.8	81.3	347	7.8	203	13.5	17,815	1,027	14.8	1,881	185	4.80	1,141
356 × 71.4	14 × 48	71.4	91	350	8.6	204	15.1	20,187	1,152	14.9	2,139	210	4.90	1,285
356 × 79.0	14 × 53	79	100.7	354	9.4	205	16.8	22,518	1,275	15	2,402	234	4.90	1,427
356 × 90.7	14 × 61	90.7	115.5	—	9.5	254	16.4	26,640	1,511	15.2	4,454	352	6.20	1,671
356 × 101.3	—	101.3	129	—	10.5	255	18.3	30,093	1,688	15.3	5,036	397	6.20	1,885
356 × 110.4	—	110.4	140.7	—	11.4	256	19.9	33,132	1,835	15.3	5,577	436	6.30	2,065
356 × 122.1	—	121.1	155.5	—	13	257	21.7	36,711	2,016	15.4	6,160	480	6.30	2,278
356 × 134.2	14 × 90	134.2	171	356	11.2	369	18	41,581	2,343	15.6	15,068	818	9.40	2,573
356 × 147.4	14 × 99	147.4	187.8	360	12.3	370	19.8	46,202	2,573	15.7	16,732	905	9.40	2,835
356 × 162.1	14 × 109	162.1	206.5	364	13.3	371	21.8	51,613	2,835	15.8	18,605	1,003	9.50	3,146
356 × 178.8	14 × 120	178.8	227.8	368	15	373	23.9	57,440	3,114	15.8	20,603	1,106	9.50	3,474
356 × 196.3	14 × 132	196.5	250.3	372	16.4	374	26.2	63,683	3,425	16	22,810	1,221	9.60	3,835
356 × 216.3	14 × 145	216.3	275.5	375	17.3	394	27.7	71,175	3,802	16.1	28,179	1,431	10.1	4,261
356 × 236.5	14 × 159	236.5	301.3	380	18.9	395	30.2	79,084	4,162	16.2	31,134	1,576	10.2	4,703
356 × 262.3	14 × 176	262.3	334.2	387	21.1	398	33.3	89,073	4,605	16.3	34,880	1,753	10.2	5,244
356 × 287.7	14 × 193	287.7	366.5	393	22.6	399	36.6	99,895	5,080	16.5	38,751	1,950	10.3	5,817
356 × 314.0	—	314	400	—	24.9	401	39.6	110,717	5,539	16.6	42,872	2,130	10.3	6,391
356 × 346.9	—	346.9	442	—	27.2	404	43.7	125,285	6,145	16.8	47,866	2,376	10.4	7,145
356 × 382.9	14 × 257	382.9	487.8	—	29.8	406	48	141,518	6,800	17	53,694	2,638	10.5	7,980
356 × 421.9	—	421.9	537.5	—	32.8	409	52.6	159,839	7,522	17.2	59,937	2,933	10.6	8,882
356 × 462.9	—	462.9	589.7	—	35.8	412	57.4	180,228	8,292	17.5	67,013	3,261	10.7	9,881
356 × 511.5	—	511.5	651.7	—	35.8	416	62.7	203,953	9,160	17.7	75,338	3,622	10.8	11,012
356 × 552.0	—	552	703.3	—	39.1	418	67.6	226,429	9,947	18	82,830	3,949	10.8	12,061
356 × 592.5	—	592.5	754.9	—	42	421	72.3	249,738	10,750	18.2	90,322	4,293	10.9	13,126
356 × 633.1	—	633.1	806.5	—	45	424	77.1	274,712	11,586	18.4	98,230	4,638	11	14,240
356 × 678.6	14 × 455	678.6	864.6	—	47.6	428	81.5	299,270	12,389	18.6	106,555	4,982	11.1	15,338
356 × 744.5	—	744.5	948.4	—	55.6	432	88.9	341,721	13,732	19	119,874	5,555	11.3	17,206
356 × 820.4	—	820.4	1,045.2	—	60.5	437	97	392,505	15,256	19.4	135,275	6,192	11.4	19,337
356 × 901.5	—	901.5	1,148.5	—	65.9	442	106	449,528	17,042	19.8	153,173	6,932	11.6	21,631
356 × 992.6	—	992.6	1,264.6	—	71.9	448	115	516,125	18,845	20.2	173,568	7,735	11.7	24,256
356 × 1088.6	—	1,088.9	1,387.2	—	78	454	125	595,210	20,975	20.8	196,460	8,636	11.9	27,202
406 × 38.90	16 × 26	38.9	49.6	398.53	6.35	139.7	8.76	12,529	629	15.9	399	57	2.80	724.31
406 × 46.20	16 × 31	46.2	58.8	403.35	6.99	140.34	11.18	15,609	773	16.3	516	74	3.00	884.9
406 × 53.70	16 × 36	53.7	68.4	—	7.49	177.42	10.92	18,647	926	16.5	1,020	115	3.90	1,048.77
406 × 59.80	16 × 40	59.8	76.1	406.65	7.75	177.67	12.83	21,561	1,060	16.8	1,203	135	4.00	1,194.62
406 × 67.40	16 × 45	67.4	85.8	409.7	8.76	178.69	14.35	24,391	1,191	16.9	1,365	153	4.00	1,348.66
406 × 74.40	16 × 50	74.4	94.8	413	9.65	179.58	16	27,430	1,327	17	1,548	172	4.00	1,507.61
406 × 85.10	16 × 57	85.1	108.4	417.32	10.92	180.85	18.16	31,550	1,511	17.1	1,794	198	4.10	1,720.64
406 × 99.80	16 × 67	99.8	127.1	414.78	10.03	259.97	16.89	39,708	1,917	17.7	4,953	390	6.20	2,130.32
406 × 114.50	—	114.5	145.8	—	11.56	261.49	19.3	46,202	2,196	17.8	5,744	441	6.30	2,458.06
406 × 132.70	—	132.7	169	—	13.34	263.27	22.23	54,110	2,540	17.9	6,785	515	6.30	2,867.74
148.90 × 100	431	148.9	189.7	—	14.9	265	25	62,018	2,868	18	7,742	585	6.40	3,244.64
457 × 52.20	18 × 35	52.2	66.5	449.58	7.62	152.4	10.8	21,228	944	17.9	637	84	3.10	1,089.74
457 × 59.80	18 × 40	59.8	76.1	454.66	8	152.78	13.34	25,473	1,121	18.3	795	104	3.20	1,284.75
457 × 68.40	18 × 46	68.4	87.1	458.72	9.14	153.92	15.37	29,636	1,291	18.4	937	122	3.30	1,486.31
457 × 74.50	18 × 50	74.5	94.8	—	9.02	190.37	14.48	33,299	1,457	18.7	1,669	175	4.20	1,655.09
457 × 82.00	—	82	104.5	—	9.91	191.26	16	37,045	1,611	18.8	1,869	195	4.20	1,835.35
457 × 89.10	—	89.1	113.5	—	10.54	191.9	17.65	40,957	1,770	18.9	2,085	218	4.30	2,015.61
457 × 96.70	—	96.7	123.2	—	11.43	192.79	19.05	44,537	1,917	19	2,281	236	4.30	2,179.48
457 × 105.30	—	105.3	134.2	—	12.57	193.93	20.57	48,699	2,081	19.1	2,510	259	4.30	2,376.12
457 × 112.90	18 × 76	112.9	143.9	—	10.8	280.29	17.27	55,359	2,393	19.6	6,327	452	6.60	2,671.09
457 × 128.10	—	128.1	163.2	—	12.19	281.69	19.56	63,683	2,720	19.7	7,284	518	6.70	3,047.99
457 × 144.30	—	144.3	183.9	—	13.59	283.08	22.1	72,840	3,081	19.9	8,366	592	6.70	3,457.67
457 × 157.50	—	157.5	200.6	—	14.99	284.48	23.88	79,500	3,343	19.9	9,157	646	6.80	3,769.02
457 × 177.80	—	177.8	226.5	—	16.64	286.13	26.92	91,155	3,785	20	10,531	736	6.80	4,277.02
533 × 65.8	21 × 44	65.8	83.9	525	8.9	165	11.4	35,088	1,337	20.5	862	104	3.20	1,563
533 × 74.4	21 × 50	74.4	94.8	529	9.7	166	13.6	40,957	1,549	20.8	1,036	125	3.30	1,803
533 × 84.6	—	84.6	107.7	—	10.3	166	16.5	48,699	1,819	21.2	1,274	153	3.40	2,114
533 × 92.7	21 × 62	92.7	118.1	533	10.2	209	15.6	55,359	2,081	21.7	2,393	228	4.50	2,360
533 × 101.3	21 × 68	101.3	129	537	10.9	210	17.4	61,602	2,294	21.8	2,693	257	4.60	2,662
533 × 108.9	21 × 73	108.9	138.7	539	11.6	211	18.8	66,597	2,474	21.9	2,939	279	4.60	2,819
533 × 123.1	21 × 83	123.1	156.8	544	13.1	212	21.2	76,170	2,802	22	3,388	230	4.60	3,212
533 × 138.3	21 × 93	138.3	176.1	549	14.7	214	23.6	86,160	3,146	22.1	3,867	362	4.70	3,622
533 × 150.9	21 × 101	150.9	192.3	—	12.7	312	20.3	100,728	3,720	22.9	10,323	660	7.30	4,146
533 × 165.6	—	165.6	211	—	14	313	22.2	111,133	4,080	23	11,405	729	7.40	4,572
533 × 181.8	—	181.8	231.6	—	15.2	315	24.4	123,224	4,474	23.1	12,695	806	7.40	5,031
533 × 196.5	—	196.5	250.3	—	16.5	316	26.3	134,026	4,834	23.2	13,890	877	7.40	5,457
533 × 218.8	—	218.8	278.7	—	18.3	318	29.2	151,091	5,391	23.3	15,650	985	7.50	6,112
610 × 82.0	24 × 55	82	104.5	—	10	178	12.8	56,191	1,818	23.1	1,211	136	3.40	2,196
610 × 92.2	—	92.2	117.4	—	10.9	179	15	64,516	2,147	23.4	1,436	161	3.50	2,507
610 × 101.6	24 × 68	101.6	129.7	—	10.5	228	14.9	76,170	2,524	24.3	2,930	257	4.70	2,900
610 × 113.4	—	113.4	144.5	—	11.2	228	17.3	87,408	2,884	24.6	3,434	302	4.90	3,277
610 × 125.1	—	125.1	159.4	—	11.9	229	19.6	98,647	3,212	24.9	3,929	342	5.00	3,671
610 × 140.3	—	140.3	178.7	—	13.1	230	22.2	112,382	3,638	25.1	4,537	393	5.00	4,162
610 × 155.0	24 × 104	155	197.4	—	12.7	324	19.1	129,031	4,228	25.7	10,780	667	7.40	4,736
610 × 174.2	—	174.2	221.9	—	14	325	21.6	147,345	4,769	25.7	12,362	762	7.50	5,359
610 × 195.0	—	195	248.4	—	15.4	327	24.4	167,324	5,391	25.9	14,652	869	7.50	6,063
610 × 217.8	—	217.8	277.4	—	16.5	328	27.7	190,633	6,080	26.2	16,275	991	7.60	6,850
610 × 241.6	—	241.6	307.7	—	17.9	329	31.1	215,191	6,784	26.4	18,439	1,121	7.70	7,669
686 × 125.6	27 × 81	125.6	160	—	11.7	253	16.3	118,626	3,490	27.2	4,412	347	5.30	3,998
686 × 140.3	—	140.3	178.7	—	12.4	254	18.9	136,107	3,982	27.7	5,162	406	5.40	4,556
686 × 151.9	—	151.9	193.6	—	13.1	254	21.1	150,675	4,375	27.9	5,786	456	5.50	4,998
686 × 169.7	—	169.7	216.1	—	14.5	256	23.6	170,238	4,900	28	6,618	516	5.50	5,621
686 × 217.3	27 × 146	217.3	276.8	—	15.4	355	24.8	234,337	6,735	29	18,439	1,041	8.20	7,554
686 × 240.1	—	240.1	305.8	—	16.8	356	27.4	261,392	7,456	29.2	20,687	1,162	8.20	8,390
686 × 264.9	—	264.9	337.4	—	18.4	358	30.2	290,945	8,226	29.5	23,100	1,291	8.30	9,291
762 × 147.4	30 × 99	147.4	187.8	753	13.2	265	17	166,076	4,408	29.7	5,328	401	5.30	5,113
762 × 160.5	30 × 108	160.5	204.5	758	13.8	266	19.3	186,055	4,900	30.2	6,077	457	5.50	5,670
762 × 173.2	—	173.2	220.7	—	14.4	267	21.6	205,201	5,391	30.5	6,826	513	5.60	6,194
762 × 184.9	—	184.9	235.5	—	14.9	267	21.6	223,100	5,817	30.7	7,534	564	5.70	6,686
762 × 197.0	132	197	251	770	15.6	268	25.4	240,165	6,227	31	8,158	610	5.70	7,161
762 × 257.3	30 × 173	257.3	327.8	773	16.6	381	27.1	341,309	8,833	32.3	24,891	1,308	8.70	9,914
762 × 284.1	30 × 191	284.1	362	779	18.6	382	30.1	381,683	9,800	32.5	28,012	1,467	8.80	11,028
762 × 314.0	30 × 211	314	400	786	19.7	384	33.4	428,717	10,865	32.8	31,509	1,639	8.90	12,274
838 × 175.7	33 × 118	175.7	223.9	—	14	292	18.8	245,576	5,883	33	7,784	534	5.90	6,801
838 × 194.0	—	194	247.1	—	—	—	—	279,290	6,653	33.5	90,074	621	6.10	7,653
838 × 210.7	—	210.7	268.4	—	15.4	293	24.4	310,091	7,341	34	10,240	700	6.20	8,423
838 × 226.4	—	226.4	—	—	16.1	294	26.8	339,644	7,980	34.3	11,363	773	6.30	9,160
838 × 299.3	33 × 201	299.3	381.3	—	18.2	400	29.2	478,665	11,209	35.6	31,176	1,560	9.00	12,651
838 × 329.2	—	329.2	419.4	—	19.7	401	32.4	532,774	12,405	35.8	34,963	1,737	9.10	14,011
838 × 359.1	—	359.1	457.4	—	—	—	—	591,047	13,585	35.8	28,793	1,934	9.20	15,387
914 × 201.1	36 × 135	201.1	256.1	—	15.2	304	20.1	324,659	7,194	35.6	9,365	618	6.00	8,341
914 × 223.9	—	223.9	283.2	—	15.9	304	23.9	376,272	8,259	36.3	11,238	739	6.30	9,521
914 × 238.0	—	238	303.2	—	16.5	305	25.9	405,824	8,882	36.6	12,279	805	6.40	10,225
914 × 253.2	—	253.2	322.6	—	17.3	306	27.9	437,042	9,504	36.8	13,319	872	6.40	10,947
914 × 271.5	—	271.5	345.8	—	18.4	307	30	470,400	10,209	36.8	14,444	944	6.50	11,766
914 × 288.7	—	288.7	367.8	—	1.4	308	32	503,638	10,881	37	15,609	1,014	6.50	12,569
914 × 313.0	—	313	398.7	—	21.1	309	34.5	549,424	11,782	37.1	17,107	1,106	6.60	13,650
914 × 342.4	36 × 230	342.4	436.2	—	19.3	418	32	624,345	13,716	37.8	39,126	1,868	9.50	15,453
914 × 365.2	—	365.2	465.2	—	20.3	419	34.3	670,130	14,666	38.1	42,039	2,016	9.50	16,551
914 × 387.4	—	387.4	493.6	—	21.3	420	36.6	720,078	15,617	38.1	45,369	2,163	9.60	17,698
914 × 417.3	—	417.3	531.6	—	22.5	422	39.9	786,673	16,879	38.4	49,950	2,360	9.70	19,173
914 × 447.2	—	447.2	569.7	—	24	423	42.7	844,947	18,190	38.6	54,110	2,556	9.70	20,648

Lo que manejamos · Poltech

Perfil I rectangular

Buscar medida

Catálogo comercial de Poltech.

Viga IPR — 176 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Peso lb/ft	Peralte mm	Patín mm	Esp. patín mm	Esp. alma mm
127.0 x 127.0	5" x 5"	23.8	16	127	127	9.1	6.1
127.0 x 127.0	5" x 5"	28.3	19	131	128	10.9	6.9
152.4 x 101.6	6" x 4"	12.7	8.00	148	100	4.8	4.3
152.4 x 101.6	6" x 4"	13.4	9.00	150	100	5.6	4.3
152.4 x 101.6	6" x 4"	17.9	12	153	102	7.1	5.8
152.4 x 101.6	6" x 4"	23.8	16	160	102	10.4	6.6
152.4 x 152.4	6" x 6"	22.3	15	152	152	6.6	5.8
152.4 x 152.4	6" x 6"	29.8	20	157	153	9.4	6.6
152.4 x 152.4	6" x 6"	37.2	25	162	154	11.7	8.1
203.2 x 101.6	8" x 4"	14.9	10	200	100	5.3	4.3
203.2 x 101.6	8" x 4"	19.3	13	203	102	6.6	5.8
203.2 x 101.6	8" x 4"	22.3	15	206	102	8.1	6.3
203.2 x 133.3	8" x 5 1/4«	26.8	18	207	133	8.4	5.8
203.2 x 133.3	8" x 5 1/4«	31.3	21	210	134	10.2	6.3
203.2 x 165.1	8" x 6 1/2«	35.7	24	201	165	10.2	6.3
203.2 x 165.1	8" x 6 1/2«	41.7	28	205	166	11.9	7.4
203.2 x 203.2	8" x 8"	46.1	31	203	203	11.2	7.4
203.2 x 203.2	8" x 8"	52.1	35	206	204	12.7	7.9
203.2 x 203.2	8" x 8"	59.5	40	210	205	14.2	9.1
203.2 x 203.2	8" x 8"	71.4	48	216	206	17.4	10.2
203.2 x 203.2	8" x 8"	86	58	222	209	20.6	13
203.2 x 203.2	8" x 8"	99	67	229	210	23.7	14.5
254.0 x 101.6	10" x 4"	17.9	12	251	101	5.3	4.8
254.0 x 101.6	10" x 4"	22.3	15	254	102	6.9	5.8
254.0 x 101.6	10" x 4"	25.3	17	257	102	8.4	6.1
254.0 x 101.6	10" x 4"	28.3	19	260	102	10.2	6.3
254.0 x 146.0	10" x 5 3/4«	32.7	22	258	146	9.1	6.1
254.0 x 146.0	10" x 5 3/4«	38.7	26	262	147	11.2	6.6
254.0 x 146.0	10" x 5 3/4«	44.6	30	266	148	13	7.6
254.0 x 203.2	10" x 8"	49.1	33	247	202	11.2	7.4
254.0 x 203.2	10" x 8"	58	39	252	203	13.5	8.1
254.0 x 203.2	10" x 8"	67	45	257	204	15.7	8.9
254.0 x 254.0	10" x 10"	72.9	49	253	254	14.2	8.6
254.0 x 254.0	10" x 10"	80.4	54	256	255	15.7	9.4
254.0 x 254.0	10" x 10"	89.4	60	260	256	17.3	10.7
254.0 x 254.0	10" x 10"	101.2	68	264	257	19.6	11.9
254.0 x 254.0	10" x 10"	114.6	77	269	259	22.1	13.5
254.0 x 254.0	10" x 10"	131.1	88	275	261	25.1	15.4
254.0 x 254.0	10" x 10"	149	100	282	263	28.4	17.3
254.0 x 254.0	10" x 10"	167	112	289	265	31.8	19.2
304.8 x 101.6	12" x 4"	20.8	14	303	101	5.8	5.1
304.8 x 101.6	12" x 4"	23.8	16	305	101	6.9	5.6
304.8 x 101.6	12" x 4"	28.3	19	309	102	8.9	6.1
304.8 x 101.6	12" x 4"	32.7	22	313	102	10.9	6.6
304.8 x 165.1	12" x 6 1/2«	38.7	26	310	165	9.7	5.8
304.8 x 165.1	12" x 6 1/2«	44.6	30	313	166	11.2	6.6
304.8 x 165.1	12" x 6 1/2«	52.1	35	317	167	13.2	7.6
304.8 x 203.2	12" x 8"	59.5	40	303	203	13.2	7.6
304.8 x 203.2	12" x 8"	67	45	306	204	14.7	8.6
304.8 x 203.2	12" x 8"	74.4	50	310	205	16.3	9.4
304.8 x 254.0	12" x 10"	78.9	53	306	254	14.7	8.9
304.8 x 254.0	12" x 10"	86.3	58	310	254	16.3	9.1
304.8 x 304.8	12" x 12"	96.7	65	308	305	15.5	9.9
304.8 x 304.8	12" x 12"	107.1	72	311	306	17	10.9
304.8 x 304.8	12" x 12"	117.6	79	314	307	18.8	11.9
304.8 x 304.8	12" x 12"	129.6	87	318	308	20.6	13.1
304.8 x 304.8	12" x 12"	142.9	96	323	309	22.9	14
304.8 x 304.8	12" x 12"	157.9	106	327	301	25.1	15.5
304.8 x 304.8	12" x 12"	178.6	120	333	313	28.1	18
304.8 x 304.8	12" x 12"	202.4	136	341	315	31.8	20.1
304.8 x 304.8	12" x 12"	226.2	152	348	317	35.6	22.1
304.8 x 304.8	12" x 12"	253	170	356	319	39.6	24.4
355.6 x 127	14" x 5"	32.7	22	349	127	8.6	5.8
355.6 x 127	14" x 5"	38.7	26	353	128	10.7	6.6
355.6 x 171.4	14" x 6 3/4«	44.6	30	352	171	9.9	6.9
355.6 x 171.4	14" x 6 3/4«	50.6	34	355	171	11.7	7.4
355.6 x 171.4	14" x 6 3/4«	56.5	38	358	172	13.2	7.9
355.6 x 203.2	14" x 8"	64	43	347	203	13.5	7.9
355.6 x 203.2	14" x 8"	71.4	48	350	204	15.2	8.6
355.6 x 203.2	14" x 8"	78.9	53	354	205	16.8	9.4
355.6 x 254.0	14" x 10"	90.8	61	353	254	16.5	9.7
355.6 x 254.0	14" x 10"	101.2	68	357	255	18.3	10.7
355.6 x 254.0	14" x 10"	110.1	74	360	256	20.1	11.4
355.6 x 254.0	14" x 10"	122	82	363	257	21.8	13
355.6 x 368.3	14" x 14 1/2«	133.9	90	356	369	18	11.2
355.6 x 368.3	14" x 14 1/2«	147.3	99	360	370	19.8	12.4
355.6 x 368.3	14" x 14 1/2«	162.2	109	364	371	21.8	13.5
355.6 x 368.3	14" x 14 1/2«	178.6	120	368	373	23.9	15
355.6 x 368.3	14" x 14 1/2«	196.4	132	372	374	26.2	16.5
355.6 x 406.4	14" x 16"	215.8	145	375	394	27.7	17.3
355.6 x 406.4	14" x 16"	236.6	159	380	395	30.2	19
355.6 x 406.4	14" x 16"	261.9	176	387	398	33.3	21.1
355.6 x 406.4	14" x 16"	287.2	193	393	399	36.6	22.6
355.6 x 406.4	14" x 16"	314	211	399	401	39.6	24.9
355.6 x 406.4	14" x 16"	346.7	233	407	404	43.7	27.2
355.6 x 406.4	14" x 16"	382.4	257	416	406	48	29.7
355.6 x 406.4	14" x 16"	421.1	283	425	409	52.6	32.8
355.6 x 406.4	14" x 16"	462.8	311	434	412	57.4	35.8
406.4 x 139.7	16" x 5 1/2"	38.7	26	399	140	8.9	6.3
406.4 x 139.7	16" x 5 1/2"	46.1	31	403	140	11.2	7.1
406.4 x 177.8	16" x 7"	53.6	36	403	178	10.9	7.6
406.4 x 177.8	16" x 7"	59.5	40	407	178	13	7.9
406.4 x 177.8	16" x 7"	67	45	410	179	14.5	8.9
406.4 x 177.8	16" x 7"	74.4	50	413	180	16	9.7
406.4 x 177.8	16" x 7"	84.8	57	417	181	18.3	10.9
406.4 x 260.3	16" x 10 1/4"	99.7	67	415	260	17	10.2
406.4 x 260.3	16" x 10 1/4"	114.6	77	420	262	19.3	11.7
406.4 x 260.3	16" x 10 1/4"	132.6	89	425	263	22.2	13.3
406.4 x 260.3	16" x 10 1/4"	149	100	431	265	25	14.9
457.2 x 152.4	18" x 6"	52.1	35	450	152	10.9	7.6
457.2 x 152.4	18" x 6"	59.5	40	455	153	13.5	8.1
457.2 x 152.4	18" x 6"	68.4	46	459	154	15.5	9.1
457.2 x 190.5	18" x 7 1/2«	74.4	50	457	190	14.5	9.1
457.2 x 190.5	18" x 7 1/2«	81.8	55	460	191	16	9.9
457.2 x 190.5	18" x 7 1/2«	89.3	60	463	192	17.8	10.7
457.2 x 190.5	18" x 7 1/2«	96.7	65	466	193	19	11.4
457.2 x 190.5	18" x 7 1/2«	105.6	71	469	194	20.6	12.7
457.2 x 279.4	18" x 11"	113.1	76	463	280	17.3	10.9
457.2 x 279.4	18" x 11"	128	86	467	282	19.6	12.2
457.2 x 279.4	18" x 11"	144.3	97	472	283	22.1	13.7
457.2 x 279.4	18" x 11"	157.7	106	476	284	23.9	15
457.2 x 279.4	18" x 11"	177.1	119	482	286	26.9	16.8
457.2 x 279.4	18" x 11"	193.5	130	489	284	30.5	17
457.2 x 279.4	18" x 11"	212.8	143	495	285	33.5	18.5
457.2 x 279.4	18" x 11"	235.1	158	501	287	36.6	20.6
457.2 x 279.4	18" x 11"	260	175	509	289	40.4	22.6
533.4 x 165.1	21" x 6 1/2«	65.5	44	525	165	11.4	8.9
533.4 x 165.1	21" x 6 1/2«	74.4	50	529	166	13.7	9.7
533.4 x 165.1	21" x 6 1/2«	84.8	57	534	166	16.5	10.4
533.4 x 209.5	21" x 8 1/4«	71.5	48	524	207	10.9	9
533.4 x 209.5	21" x 8 1/4«	92.3	62	533	209	15.7	10.2
533.4 x 209.5	21" x 8 1/4«	101.2	68	537	210	17.5	10.9
533.4 x 209.5	21" x 8 1/4«	108.7	73	539	211	18.8	11.6
533.4 x 209.5	21" x 8 1/4«	123.5	83	544	212	21.3	13.2
533.4 x 209.5	21" x 8 1/4«	138.4	93	549	214	23.6	14.7
533.4 x 311.1	21" x 12 1/4«	150.3	101	543	312	20.3	12.7
533.4 x 311.1	21" x 12 1/4«	165.2	111	546	313	22.4	14
533.4 x 311.1	21" x 12 1/4«	181.5	122	551	315	24.4	15.2
533.4 x 311.1	21" x 12 1/4«	196.7	132	554	316	26.3	16.5
533.4 x 311.1	21" x 12 1/4«	218.7	147	560	318	29.2	18.3
609.6 x 177.8	24" x 7"	81.8	55	599	178	13	10.2
609.6 x 177.8	24" x 7"	92.3	62	603	179	15	10.9
609.6 x 228.6	24" x 9"	101.2	68	603	228	15	10.7
609.6 x 228.6	24" x 9"	113.1	76	608	228	17.3	11.2
609.6 x 228.6	24" x 9"	125	84	612	229	19.6	11.9
609.6 x 228.6	24" x 9"	139.9	94	617	230	22.4	13.2
609.6 x 228.6	24" x 9"	153.3	103	623	229	24.9	14
609.6 x 323.8	24" x 12 3/4«	154.8	104	611	324	19	12.7
609.6 x 323.8	24" x 12 3/4«	174.1	117	616	325	21.6	14
609.6 x 323.8	24" x 12 3/4«	194.9	131	622	327	24.4	15.5
609.6 x 323.8	24" x 12 3/4«	217.3	146	628	328	27.7	16.5
609.6 x 323.8	24" x 12 3/4«	241	162	635	328	31	17.8
609.6 x 323.8	24" x 12 3/4«	261.9	176	641	327	34	19.1
609.6 x 323.8	24" x 12 3/4«	285	192	647	329	37.1	20.6
609.6 x 323.8	24" x 12 3/4«	306	207	653	330	39.9	22.1
685.8 x 254.0	27" x 10"	125	84	678	253	16.3	11.7
685.8 x 254.0	27" x 10"	139.9	94	684	254	19	12.4
685.8 x 254.0	27" x 10"	151.8	102	688	255	21.1	13.2
685.8 x 254.0	27" x 10"	169.6	114	693	256	23.6	14.5
685.8 x 254.0	27" x 10"	192	129	702	254	27.9	15.5
685.8 x 355.6	27" x 14"	217.3	146	695	355	24.9	15.5
685.8 x 355.6	27" x 14"	239.6	161	701	356	27.4	16.8
685.8 x 355.6	27" x 14"	265	178	706	358	30.2	18.4
685.8 x 355.6	27" x 14"	289	194	714	356	34	19
762.0 x 266.7	30" x 10 1/2«	133.9	90	750	264	15.5	11.9
762.0 x 266.7	30" x 10 1/2«	147.3	99	753	265	17	13.2
762.0 x 266.7	30" x 10 1/2«	160.7	108	758	266	19.3	14
762.0 x 266.7	30" x 10 1/2«	172.6	116	762	267	21.6	14.5
762.0 x 266.7	30" x 10 1/2«	184.7	124	766	267	23.6	14.9
762.0 x 266.7	30" x 10 1/2«	196.4	132	769	267	25.4	15.5
762.0 x 266.7	30" x 10 1/2«	220.2	148	779	266	30	16.5
762.0 x 381.0	30" x 15"	257.5	173	773	381	27.1	16.7
762.0 x 381.0	30" x 15"	284.2	191	779	382	30.1	18
762.0 x 381.0	30" x 15"	314	211	786	384	33.4	19.7
828.2 x 292.1	33" x 11 1/2"	175.6	118	835	292	18.8	14
828.2 x 292.1	33" x 11 1/2"	193.4	130	840	292	21.8	14.7
828.2 x 292.1	33" x 11 1/2"	209.8	141	846	293	24.4	15.5
828.2 x 292.1	33" x 11 1/2"	226.2	152	850	293	26.7	16
828.2 x 400.1	33" x 15 3/4"	299	201	856	399	29.2	18.2
828.2 x 400.1	33" x 15 3/4"	329	221	861	401	32.5	19.7
914.4 x 304.8	36" x 12"	200.9	135	903	304	20.1	15.2
914.4 x 304.8	36" x 12"	223.2	150	911	304	23.9	16
914.4 x 304.8	36" x 12"	238.1	160	915	305	25.9	16.5
914.4 x 304.8	36" x 12"	253.3	170	918	306	27.9	17.2
914.4 x 304.8	36" x 12"	312.5	210	932	309	34.5	21.1
1016 x 304.8	40" x 12"	221.7	149	970	300	21.1	16

Perfil estructural

Viga IPS

Perfil I estándar, de patín angosto e inclinado. Marcos ligeros y trabes de claro corto.

Grados: ASTM A36
Largo: 6.10 · 12.20 m
Renglones: 42 en 2 tablas

Propiedades de sección · IMCA

IPS / viga estándar

Buscar medida

PERFIL I ESTANDAR — 36 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	d mm	tw mm	bf mm	tf mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
76 × 8.50	3 × 5.70	8.50	10.8	76	4.32	59.18	6.6	105	27.5	3.12	18.94	6.40	1.33
76 × 11.20	3 × 7.50	11.2	14.3	76	8.86	63.73	6.6	122	32	2.92	24.4	7.70	1.31
100 × 8.32	4 × 5.60	8.32	10.6	100	4.5	50	6.8	171	34.2	4.01	12.2	4.88	1.07
102 × 11.50	7.70	11.5	14.6	102	4.9	67.64	7.44	253	49.8	4.17	31.8	9.40	1.48
102 × 14.10	9.50	14.1	18	102	8.28	71.02	7.44	283	55.6	3.96	37.6	10.6	1.45
127 × 11.20	5 × 7.50	11.2	14.2	120	5.1	78	7.7	329	54.7	4.81	25.16	7.41	1.33
127 × 14.90	5 × 10.00	14.9	19	127	5.44	76.3	8.28	512	80.6	5.21	50.78	13.3	1.63
127 × 22.00	5 × 14.75	22	28	127	12.55	83.41	8.28	633	99.8	4.75	69.51	16.6	1.57
160 × 17.90	6 × 12.00	17.9	22.8	160	6.3	74	9.5	938	117	6.41	64.45	14.8	1.68
152 × 18.60	12.50	18.6	23.7	152	5.89	84.63	9.12	920	120.8	6.22	75.75	17.9	1.79
152 × 25.70	17.25	25.7	32.7	152	11.81	90.55	9.12	1,095	143.7	5.79	96.15	21.3	1.71
178 × 22.80	7 × 15.30	22.8	29	178	6.4	93.01	9.96	1,528	172.1	7.26	110	23.6	1.95
178 × 29.80	7 × 20.00	29.8	37.9	178	11.43	98.04	9.96	1,765	198.3	6.83	132	26.9	1.86
200 × 26.30	8 × 17.70	26.3	33.5	200	7.5	90	11.3	2,148	214	8.01	137.9	26	2.03
203 × 27.40	18.40	27.4	34.9	203	6.88	101.63	10.82	2,397	236	8.28	155	30.5	2.11
203 × 34.20	23.00	34.2	43.7	203	11.2	105.94	10.82	2,701	265.5	7.87	179	33.9	2.03
229 × 32.44	9 × 21.80	32.44	40.7	229	7.4	110	11.6	3,535	309.3	9.32	214.8	39.1	2.29
254 × 37.80	10 × 25.40	37.8	48.1	254	7.9	118.39	12.47	5,161	404.8	10.34	283	47.7	2.42
254 × 52.10	10 × 35.00	52.1	66.5	254	15.09	125.58	12.47	6,119	481.8	9.60	348	55.4	2.29
305 × 47.30	12 × 31.80	47.3	60.3	305	8.89	127	13.82	9,074	596.5	12.27	390	61.3	2.54
305 × 52.10	12 × 35.00	52.1	66.5	305	10.87	128.98	13.82	9,532	626	12	411	63.7	2.49
305 × 60.7	12 × 40.8	60.7	77.4	305	11.73	133.4	16.74	11,321	744	12.11	566	84.6	2.69
305 × 74.4	12 × 50.0	74.4	94.8	305	17.45	139.11	16.74	12,695	832.5	11.56	653	94.1	2.62
381 × 63.8	15 × 42.9	63.8	81.3	381	10.44	139.73	15.8	18,606	976.7	15.11	599	85.7	2.72
381 × 74.4	15 × 50.0	74.4	94.8	381	13.97	143.25	15.8	20,229	1,062	14.61	653	91.3	2.62
457 × 81.4	18 × 54.7	81.4	104	457	11.71	152.43	17.55	33,465	1,465	17.96	866	113.7	2.90
457 × 104.0	18 × 70.0	104.2	133	457	18.06	158.78	17.55	38,543	1,688	17.04	1,003	127	2.74
508 × 98.2	20 × 66.0	98.2	125	508	12.83	158.88	20.19	49,532	1,950	19.89	1,153	145	3.02
508 × 112.0	20 × 75.0	112	142	508	16.13	162.18	20.19	53,278	2,098	19.35	1,240	152.7	2.95
508 × 128.0	20 × 86.0	128	163	514	16.76	179.32	23.37	65,765	2,540	20	1,948	218	3.45
508 × 143.0	20 × 96.0	143	182	514	20.32	182.88	23.37	69,511	2,704	19.58	2,089	228	3.38
610 × 119.0	24 × 80.0	119	152	607	12.7	177.8	22.1	87,409	2,868	24.05	1,756	198	3.40
610 × 134.0	24 × 90.0	134	171	607	15.88	180.98	22.1	93,652	3,064	23.39	1,869	206	3.30
610 × 149.0	24 × 100.0	149	189	607	18.92	184.02	22.1	99,479	3,261	22.91	1,985	216	3.23
610 × 158.0	24 × 106.0	158	201	622	15.75	200	27.69	122,372	3,933	24.66	3,209	321	4.00
610 × 180.0	24 × 121.0	180	230	622	20.32	204.47	27.69	131,529	4,228	23.95	3,467	339	3.89

Lo que manejamos · Poltech

Perfil I estándar

Surtido comercial de Poltech. Ojo: en el archivo original este cuadro venía guardado como 'CANAL CPS', pero es la tabla de viga IPS.

Viga IPS — 6 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Peso lb/ft	Ancho patín mm	Esp. patín mm
76.2	3.0"	8.48	5.70	59	4
101.6	4.0"	11.46	7.70	68	5
127.0	5.0"	14.88	10	76	5
152.4	6.0"	18.6	12.5	85	6
200.0	7.87"	26.2	17.6	90	7
203.2	8.0"	27.38	18.4	102	7

Perfil estructural

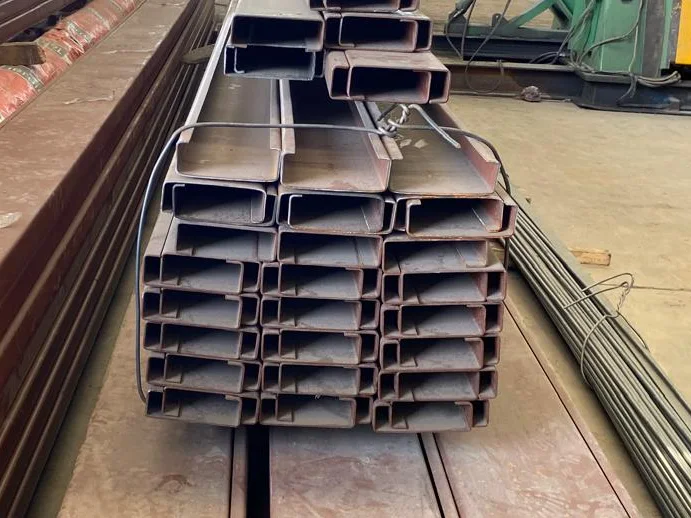

Canal CPS

Canal de patín estrecho. Larguero, contraventeo y marco de hueco.

Grados: ASTM A36
Largo: 6.10 · 12.20 m
Renglones: 30 en 1 tabla

Propiedades de sección · IMCA

Canal estándar

Buscar medida

PERFIL C ESTANDAR — 30 secciones con dimensiones y propiedades
Designación mm	pulg.	Área cm²	tw mm	bf mm	tf mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
76 × 6.10	3 × 4.10	7.68	4.32	35.81	6.93	66.6	17.5	2.95	8.32	3.44	1.04
76 × 7.44	3 × 5.00	9.42	6.5	38.05	6.93	74.9	19.7	2.82	10.41	3.93	1.04
76 × 8.93	3 × 6.00	11.29	9.04	40.54	6.93	87.4	22.9	2.78	12.9	4.42	1.07
102 × 8.04	4 × 5.40	10.06	4.57	40.13	7.52	158.2	31.1	3.98	13.32	4.75	1.14
102 × 10.79	4 × 7.25	13.68	8.13	43.69	7.52	187.3	36.9	3.70	18.31	5.74	1.17
127 × 9.97	5 × 6.70	12.58	4.83	44.45	8.13	308	48.5	4.95	19.98	6.23	1.27
127 × 13.39	5 × 9.00	16.97	8.26	47.88	8.13	366.3	57.7	4.65	26.64	7.37	1.24
152 × 12.20	6 × 8.20	15.42	5.08	48.77	8.71	541.1	71	5.94	29.14	8.19	1.37
152 × 15.63	6 × 10.50	19.81	7.98	51.66	8.71	628.5	82.5	5.64	36.21	9.34	1.35
152 × 19.35	6 × 13.00	24.58	11.1	54.79	8.71	720.1	94.5	5.41	45.79	10.65	1.35
152 × 23.07	6 × 15.50	29.42	14.3	58	8.7	812.9	106.7	5.26	53.3	12.1	1.35
178 × 14.58	7 × 9.80	18.39	5.33	53.09	9.3	878.2	98.8	6.91	40.79	10.32	1.50
178 × 18.23	7 × 12.25	23.1	7.98	55.73	9.3	1,003.1	112.8	6.58	49.95	11.63	1.47
178 × 21.95	7 × 14.75	27.87	10.64	58.39	9.3	1,127.9	126.9	6.38	58.27	12.95	1.45
203 × 17.11	8 × 11.50	21.68	5.59	57.4	9.91	1,344.4	132.3	7.87	54.11	12.95	1.60
203 × 20.46	8 × 13.75	25.94	7.7	59.51	9.91	1,409.1	146.6	7.59	62.43	14.09	1.57
203 × 27.90	8 × 18.75	35.42	12.37	64.19	9.91	1,818.9	179	7.16	83.25	16.39	1.52
203 × 31.62	8 × 21.25	40.32	14.8	67	9.9	1,988.1	195.7	7.02	93.7	18.2	1.52
229 × 19.80	9 × 13.40	25.3	5.92	62	10.5	1,970	172	8.83	70.8	15.1	1.67
229 × 22.10	9 × 15.00	28.2	7.24	63	10.5	2,090	183	8.61	76.4	15.7	1.65
229 × 29.30	9 × 20.00	37.3	11.4	67	10.5	2,460	216	8.13	92.3	17.4	1.57
254 × 22.76	10 × 15.30	28.97	6.1	66.04	11.07	2,805.4	221.2	9.83	94.9	19.01	1.81
254 × 29.76	10 × 20.00	37.94	9.63	69.57	11.07	3,284.1	258.9	9.30	116.96	21.63	1.76
254 × 37.20	10 × 25.00	47.42	13.36	73.3	11.07	3,796	298.2	8.94	139.85	24.25	1.72
254 × 44.64	10 × 30.00	56.9	17.09	77.04	11.07	4,287.2	339.2	8.69	163.99	27	1.70
305 × 30.80	12 × 20.70	39.29	7.16	74.73	12.72	5,369.4	352.3	11.71	161.5	28.35	2.03
305 × 37.20	12 × 25.00	47.42	9.83	77.39	12.72	5,993.7	394.9	11.25	186.05	30.81	1.98
381 × 50.30	15 × 33.90	64	10.2	86	16.5	13,000	683	14.3	326	48.8	2.26
381 × 59.10	15 × 40.00	75.3	13.2	89	16.5	14,300	751	13.8	364	51.8	2.20
381 × 73.00	15 × 50.00	93.7	18.2	94	16.5	16,400	863	13.2	424	56.6	2.13

Perfil estructural

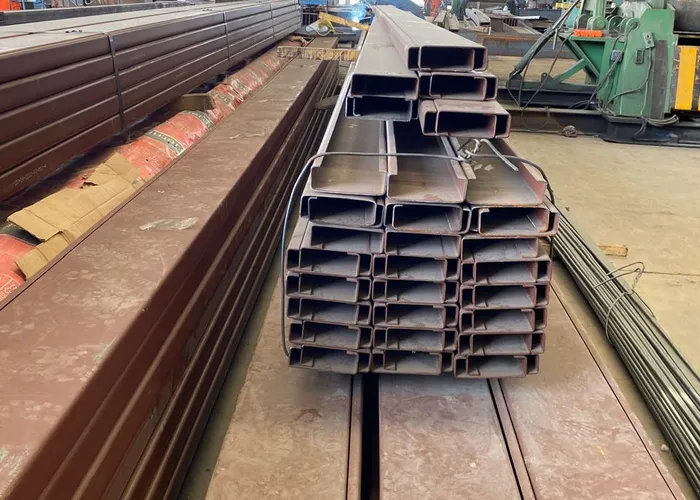

Polín monten

Perfil C formado en frío con labio. El larguero de cubierta y de muro.

Largo: 6.10 · 12.20 m
Renglones: 98 en 3 tablas

Lo que manejamos · Poltech

Perfil C formado en frío

Surtido comercial de Poltech, con piezas por paquete.

Polín monten — 20 secciones con dimensiones y propiedades
Designación pulg.	Comercial	Calibre	Espesor pulg	Largo m	Pzas/paquete	Peso kg/m	Peso/pieza kg
3" x 1.5" x 0.5"	3 Cal 14	14	0.075	6.00	60	2.61	15.66
3" x 1.5" x 0.5"	3 Cal 16	16	0.06	6.00	60	2.08	12.48
4" x 2" x 0.75"	4 Cal 14	14	0.075	6.00	48	3.40	20.4
4" x 2" x 0.75"	4 Cal 16	16	0.06	6.00	48	2.71	16.26
5" x 2" x 0.75"	5 Cal 14	14	0.075	6.00	48	3.80	22.8
6" x 2" x 0.75"	6 Cal 12	12	0.105	6.00	48	5.86	35.16
6" x 2" x 0.75"	6 Cal 14	14	0.075	6.00	48	4.19	25.14
8" x 2.75" x 0.75"	8 Cal 10	10	0.135	8.00	24	9.90	79.2
8" x 2.75" x 0.75"	8 Cal 12	12	0.105	8.00	24	7.96	63.68
8" x 2.75" x 0.75"	8 Cal 14	14	0.075	6.00	24	5.70	34.2
8" x 2.75" x 0.75"	8 Cal 14	14	0.075	8.00	24	5.70	45.6
10" x 2.75" x 0.75"	10 Cal 10	10	0.135	10	16	11.2	112
10" x 2.75" x 0.75"	10 Cal 12	12	0.105	10	16	9.06	90.6
10" x 2.75" x 0.75"	10 Cal 14	14	0.075	10	16	6.49	64.9
10" x 3.5" x 0.75"	10 Cal 14	14	0.075	10	16	6.85	68.5
12" x 3.5" x 0.75"	12 Cal 10	10	0.135	12	12	13.6	163.2
12" x 3.5" x 1"	12 Cal 12	12	0.105	12	12	10.99	131.88
12" x 3.5" x 1"	12 Cal 14	14	0.075	12	12	7.87	94.44
14" x 3.5" x 1"	14 Cal 12	12	0.105	14	12	12.1	169.4
14" x 3.5" x 1"	14 Cal 14	14	0.075	14	12	8.70	121.8

Perfil C formado en frío · IMCA

Canal monten / polín C

Buscar medida

PERFIL C FORMADO EN FRIO — 39 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	d mm	t mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
76 × 18	3 × 18	1.68	2.12	76.2	1.21	20.58	5.40	3.11	5.45	1.87	1.60
76 × 16	3 × 16	2.15	2.77	76.2	1.52	25.94	6.81	3.09	7.22	2.55	1.63
76 × 14	3 × 14	2.66	3.37	76.2	1.9	31.72	8.33	3.07	8.72	3.08	1.61
76 × 12	3 × 12	3.77	4.78	76.2	2.66	42.31	11.1	2.98	12.25	4.54	1.60
89 × 18	3 × 1/2	1.97	—	88.9	1.21	32.86	7.39	3.63	8.63	2.61	1.86
89 × 16	3 × 16	2.45	3.11	88.9	1.52	40.65	9.15	3.62	10.58	3.20	1.85
89 × 14	3 × 14	3.12	3.94	88.9	1.9	50.75	11.42	3.59	13.74	4.26	1.87
89 × 12	3 × 12	4.31	5.45	88.9	2.66	67.31	15.14	3.51	18.19	5.75	1.83
89 × 10	3 × 10	5.44	6.88	88.9	3.42	83.29	18.74	3.48	22.06	6.97	1.79
102 × 18	4 × 18	2.09	2.65	101.6	1.21	44.58	8.78	4.11	9.10	2.67	1.85
102 × 16	4 × 16	2.61	3.30	101.6	1.52	55.21	10.87	4.06	11.15	3.28	1.84
102 × 14	4 × 14	3.31	4.18	101.6	1.9	69.09	13.6	4.06	14.51	4.36	1.86
102 × 12	4 × 12	4.57	5.79	101.6	2.66	92.18	18.1	3.99	19.37	5.92	1.83
102 × 10	4 × 10	5.78	7.32	101.6	3.42	114.38	22.52	3.95	23.52	7.19	1.79
127 × 18	5 × 18	2.33	2.95	127	1.21	74.53	11.74	5.02	9.87	2.76	1.83
127 × 16	5 × 16	2.91	3.69	127	1.52	92.45	14.56	5.01	12.11	3.39	1.81
127 × 14	5 × 14	3.69	4.67	127	1.9	116.1	18.28	4.99	15.79	4.51	1.84
127 × 12	5 × 12	5.11	6.46	127	2.66	156.19	24.6	4.92	21.32	6.19	1.82
127 × 10	5 × 10	6.47	8.19	127	3.42	194.62	30.65	4.88	25.93	7.53	1.78
152 × 16	6 × 16	3.58	4.53	152.4	1.52	166.5	21.85	6.06	23.73	5.34	2.29
152 × 14	6 × 14	4.53	5.73	152.4	1.9	209.02	27.43	6.04	30.77	7.05	2.32
152 × 12	6 × 12	6.17	7.82	152.4	2.66	278.93	36.6	5.97	39.47	9.00	2.25
152 × 10	6 × 10	7.84	9.92	152.4	3.42	349.47	45.86	5.93	48.45	11.05	2.21
178 × 16	7 × 16	4.04	5.11	177.8	1.52	253.23	28.48	7.04	31.6	6.33	2.49
178 × 14	7 × 14	5.10	6.46	177.8	1.9	318.7	35.79	7.02	40.95	8.33	2.52
178 × 12	7 × 12	7.08	8.96	177.8	2.66	433.37	48.75	6.95	55.83	11.48	2.50
178 × 10	7 × 10	9.01	11.4	177.8	3.42	544.78	61.28	6.91	68.89	14.17	2.46
203 × 16	8 × 16	4.50	5.69	203.2	1.52	364.86	35.91	8.01	40.8	7.37	2.68
203 × 14	8 × 14	5.67	7.18	203.2	1.9	458.63	45.14	7.99	52.83	9.68	2.71
203 × 12	8 × 12	7.88	9.98	203.2	2.66	626.9	61.71	7.93	72.33	13.38	2.69
203 × 10	8 × 10	10.7	12.88	203.2	3.42	801.37	78.87	7.89	94.13	17.66	2.70
229 × 16	9 × 16	4.96	6.27	228.6	1.52	505.05	44.19	8.97	51.69	8.51	2.87
229 × 14	9 × 14	6.24	7.90	228.6	1.9	634.98	55.55	8.96	66.86	11.14	2.91
229 × 12	9 × 12	8.68	10.99	228.6	2.66	870.54	76.16	8.90	91.84	15.44	2.89
229 × 10	9 × 10	11.34	14.35	228.6	3.42	1,128.07	98.69	8.86	124.91	21.51	2.95
254 × 14	10 × 14	6.82	8.63	254	1.9	850.22	96.95	9.93	82.83	12.67	3.10
254 × 10	10 × 10	12.37	15.65	254	3.42	1,514.78	119.27	9.84	155	24.44	3.15
305 × 12	12 × 12	10.66	13.49	304.8	2.66	1,820.11	119.43	11.61	126.59	19.05	3.06
305 × 10	12 × 10	13.74	17.39	304.8	3.42	2,333.44	153.1	11.58	164.52	25	3.08

Polín Z formado en frío · IMCA

Polín Z

Buscar medida

PERFIL Z FORMADO EN FRIO — 39 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	d mm	t mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
76 × 18	3 × 18	1.68	2.12	76.2	1.21	20.58	5.40	3.11	5.45	1.87	1.60
76 × 16	3 × 16	2.15	2.77	76.2	1.52	25.94	6.81	3.09	7.22	2.55	1.63
76 × 14	3 × 14	2.66	3.37	76.2	1.9	31.72	8.33	3.07	8.72	3.08	1.61
76 × 12	3 × 12	3.77	4.78	76.2	2.66	42.31	11.1	2.98	12.25	4.54	1.60
89 × 18	31/2 × 18	1.97	—	88.9	1.21	32.86	7.39	3.63	8.63	2.61	1.86
89 × 16	31/2 × 16	2.45	3.11	88.9	1.52	40.65	9.15	3.62	10.58	3.20	1.85
89 × 14	31/2 × 14	3.12	3.94	88.9	1.9	50.75	11.42	3.59	13.74	4.26	1.87
89 × 12	31/2 × 12	4.31	5.45	88.9	2.66	67.31	15.14	3.51	18.19	5.75	1.83
89 × 10	31/2 × 10	5.44	6.88	88.9	3.42	83.29	18.74	3.48	22.06	6.97	1.79
102 × 18	4 × 18	2.09	2.65	101.6	1.21	44.58	8.78	4.11	9.10	2.67	1.85
102 × 16	4 × 16	2.61	3.30	101.6	1.52	55.21	10.87	4.06	11.15	3.28	1.84
102 × 14	4 × 14	3.31	4.18	101.6	1.9	69.09	13.6	4.06	14.51	4.36	1.86
102 × 12	4 × 12	4.57	5.79	101.6	2.66	92.18	18.1	3.99	19.37	5.92	1.83
102 × 10	4 × 10	5.78	7.32	101.6	3.42	114.38	22.52	3.95	23.52	7.19	1.79
127 × 18	5 × 18	2.33	2.95	127	1.21	74.53	11.74	5.02	9.87	2.76	1.83
127 × 16	5 × 16	2.91	3.69	127	1.52	92.45	14.56	5.01	12.11	3.39	1.81
127 × 14	5 × 14	3.69	4.67	127	1.9	116.1	18.28	4.99	15.79	4.51	1.84
127 × 12	5 × 12	5.11	6.46	127	2.66	156.19	24.6	4.92	21.32	6.19	1.82
127 × 10	5 × 10	6.47	8.19	127	3.42	194.62	30.65	4.88	25.93	7.53	1.78
152 × 16	6 × 16	3.58	4.53	152.4	1.52	166.5	21.85	6.06	23.73	5.34	2.29
152 × 14	6 × 14	4.53	5.73	152.4	1.9	209.02	27.43	6.04	30.77	7.05	2.32
152 × 12	6 × 12	6.17	7.82	152.4	2.66	278.93	36.6	5.97	39.47	9.00	2.25
152 × 10	6 × 10	7.84	9.92	152.4	3.42	349.47	45.86	5.93	48.45	11.05	2.21
178 × 16	7 × 16	4.04	5.11	177.8	1.52	253.23	28.48	7.04	31.6	6.33	2.49
178 × 14	7 × 14	5.10	6.46	177.8	1.9	318.7	35.79	7.02	40.95	8.33	2.52
178 × 12	7 × 12	7.08	8.96	177.8	2.66	433.37	48.75	6.95	55.83	11.48	2.50
178 × 10	7 × 10	9.01	11.4	177.8	3.42	544.78	61.28	6.91	68.89	14.17	2.46
203 × 16	8 × 16	4.50	5.69	203.2	1.52	364.86	35.91	8.01	40.8	7.37	2.68
203 × 14	8 × 14	5.67	7.18	203.2	1.9	458.63	45.14	7.99	52.83	9.68	2.71
203 × 12	8 × 12	7.88	9.98	203.2	2.66	626.9	61.71	7.93	72.33	13.38	2.69
203 × 10	8 × 10	10.7	12.88	203.2	3.42	801.37	78.87	7.89	94.13	17.66	2.70
229 × 16	9 × 16	4.96	6.27	228.6	1.52	505.05	44.19	8.97	51.69	8.51	2.87
229 × 14	9 × 14	6.24	7.90	228.6	1.9	634.98	55.55	8.96	66.86	11.14	2.91
229 × 12	9 × 12	8.68	10.99	228.6	2.66	870.54	76.16	8.90	91.84	15.44	2.89
229 × 10	9 × 10	11.34	14.35	228.6	3.42	1,128.07	98.69	8.86	124.91	21.51	2.95
254 × 14	10 × 14	6.82	8.63	254	1.9	850.22	96.95	9.93	82.83	12.67	3.10
254 × 10	10 × 10	12.37	15.65	254	3.42	1,514.78	119.27	9.84	155	24.44	3.15
305 × 12	12 × 12	10.66	13.49	304.8	2.66	1,820.11	119.43	11.61	126.59	19.05	3.06
305 × 10	12 × 10	13.74	17.39	304.8	3.42	2,333.44	153.1	11.58	164.52	25	3.08

Barra y ángulo

Ángulos

Lados iguales y desiguales. Celosía, atiesador y marco de louver.

Grados: ASTM A36
Largo: 6.10 m y 12.20 m
Renglones: 179 en 4 tablas

Lados iguales · IMCA

Ángulo LI

Buscar medida

ANGULO DE LADOS IGUALES — 60 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	k mm	R mm	I cm⁴	S cm³	r cm
19 × 3	3/4 × 1/8	0.88	1.11	11.1	3.2	0.37	0.28	0.58
19 × 5	3/4 × 3/16	1.25	1.59	12.7	3.2	0.50	0.39	0.56
22 × 3	7/8 × 1/8	1.04	1.32	11.1	3.2	0.58	0.38	0.66
22 × 5	7/8 × 3/16	1.49	1.90	12.7	3.2	0.79	0.54	0.66
25 × 3	1 × 1/8	1.19	1.52	11.1	3.2	0.92	0.51	0.79
25 × 5	1 × 3/16	1.73	2.21	12.7	3.2	1.25	0.72	0.76
25 × 6	1 × 1/4	2.22	2.80	14.3	3.2	1.54	0.92	0.74
32 × 5	1 × 3/16	2.20	2.79	12.7	4.7	2.54	1.16	0.97
32 × 6	1 × 1/4	2.86	3.72	14.3	4.7	3.21	1.49	0.94
38 × 3	1 × 1/2	1.83	2.34	11.1	4.7	3.25	1.18	1.17
38 × 5	1 × 3/16	2.68	3.43	12.7	4.7	4.58	1.64	1.17
38 × 6	1 × 1/4	3.48	4.40	14.3	4.7	5.83	2.20	1.14
38 × 8	1 × 5/16	4.26	5.40	15.9	4.7	6.66	2.62	1.12
38 × 10	1 × 3/8	4.99	6.34	17.5	4.7	7.91	3.11	1.12
44 × 3	1 × 3/4	2.14	2.74	11.1	6.3	5.41	1.64	1.40
44 × 5	1 × 3/16	3.15	4.03	12.7	6.3	7.49	2.29	1.37
44 × 6	1 × 1/4	4.12	5.20	14.3	6.3	9.57	3.11	1.35
44 × 8	1 × 5/16	5.04	6.39	15.9	6.3	11.24	3.77	1.32
51 × 3	2 × 1/8	2.46	3.10	11.1	6.3	7.91	2.13	1.60
51 × 5	2 × 3/16	3.63	4.61	12.7	6.3	11.45	3.11	1.57
51 × 6	2 × 1/4	4.75	6.06	14.3	6.3	14.57	4.10	1.55
51 × 8	2 × 5/16	5.83	7.42	15.9	6.3	17.46	4.92	1.52
51 × 10	2 × 3/8	6.99	8.77	17.5	6.3	19.98	5.74	1.50
64 × 4	2 × 1/2	3.83	4.88	11.1	6.3	19.44	4.21	1.98
64 × 5	2 × 3/16	4.61	5.81	12.7	6.3	22.89	4.92	1.98
64 × 6	2 × 1/4	6.10	7.68	14.3	6.3	29.14	6.39	1.96
64 × 8	2 × 5/16	7.44	9.48	15.9	6.3	35.38	7.87	1.93
64 × 10	2 × 3/8	8.78	11.16	17.5	6.3	40.79	9.34	1.91
76 × 5	3 × 3/16	5.52	7.03	12.7	7.9	40.01	7.22	2.39
76 × 6	3 × 1/4	7.29	9.29	14.3	7.9	51.6	9.50	2.36
76 × 8	3 × 5/16	9.08	11.48	15.9	7.9	62.9	11.6	2.34
76 × 10	3 × 3/8	10.72	13.61	17.5	7.9	73.3	13.6	2.31
76 × 11	3 × 7/16	12.35	15.68	19.1	7.9	82.8	15.6	2.31
76 × 13	3 × 1/2	13.99	17.74	20.6	7.9	92.4	17.5	2.29
76 × 16	3 × 5/8	17.11	21.68	27	7.9	109.1	21.3	2.24
89 × 5	3 × 1/2	6.55	8.36	12.7	8.4	64.36	9.92	2.78
89 × 6	3 × 1/4	8.63	10.9	14.3	8.3	83.66	13.01	2.77
89 × 8	3 × 5/16	10.71	13.48	15.9	8.1	101.95	16	2.74
89 × 10	3 × 3/8	12.65	16	17.5	8	119.46	18.84	2.72
89 × 13	3 × 1/2	16.52	20.97	20.6	7.6	151.51	24.41	2.69
102 × 6	4 × 1/4	9.82	12.52	15.9	9.5	124.9	17.2	3.18
102 × 8	4 × 5/16	12.2	15.48	17.5	9.5	154.4	21.1	3.15
102 × 10	4 × 3/8	14.58	18.45	19.1	9.5	181.5	24.9	3.12
102 × 11	4 × 7/16	16.82	21.35	20.6	9.5	206.9	28.7	3.12
102 × 13	4 × 1/2	19.05	24.19	22.2	9.5	231.4	32.3	3.10
102 × 16	4 × 5/8	23.36	29.74	25.4	9.5	277.2	39.3	3.05
102 × 19	4 × 3/4	27.53	35.1	28.6	9.5	318.8	46	3.02
127 × 10	5 × 3/8	18.3	23.29	22.2	12.7	363.8	39.7	3.96
127 × 11	5 × 7/16	21.28	26.97	23.8	12.7	417.1	45.7	3.94
127 × 13	5 × 1/2	24.11	30.65	25.4	12.7	468.3	51.6	3.91
127 × 16	5 × 5/8	29.76	37.81	28.6	12.7	535.3	63.3	3.86
127 × 19	5 × 3/4	35.12	44.77	31.8	12.7	655.2	74.2	3.81
152 × 10	6 × 3/8	22.17	28.13	22.2	12.7	640.6	57.8	4.78
152 × 11	6 × 7/16	25.6	32.65	23.8	12.7	735.9	66.7	4.75
152 × 13	6 × 1/2	29.17	37.1	25.4	12.7	828.7	75.5	4.72
152 × 14	6 × 9/16	32.59	41.48	27	12.7	918.6	84.2	4.70
152 × 16	6 × 5/8	36.01	45.87	28.6	12.7	1,005.6	92.8	4.67
152 × 19	6 × 3/4	42.71	54.45	31.8	12.7	1,171.7	109.1	4.65
152 × 22	6 × 7/8	49.26	62.77	35	12.7	1,328.6	125	4.60
152 × 25	6 × 1	55.66	70.97	38.1	12.7	1,476	140	4.57

Lados desiguales · IMCA

Ángulo LD

ANGULO DE LADOS DESIGUALES — 15 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	k mm	R mm	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
102 × 76 × 6	4 × 3 × 1/4	8.63	10.9	17.46	9.3	115.3	16.39	3.25	56.6	9.83	2.26
102 × 76 × 8	4 × 3 × 5/16	10.72	13.48	19.1	9.3	140.7	20.16	3.23	68.7	11.96	2.25
102 × 76 × 10	4 × 3 × 3/8	12.63	16	20.64	9.3	164.8	23.93	3.20	79.9	14.26	2.23
102 × 76 × 11	4 × 3 × 7/16	14.58	18.51	22.23	9.3	188.1	27.53	3.18	90.7	16.22	2.21
102 × 76 × 13	4 × 3 × 1/2	16.52	20.96	23.81	9.3	210.2	30.97	3.16	100.7	18.36	2.19
102 × 76 × 16	4 × 3 × 5/8	20.24	25.67	26.98	9.3	251	37.69	3.12	119.3	22.13	2.15
102 × 76 × 19	4 × 3 × 3/4	23.81	30.26	28.58	9.3	288.4	43.91	3.09	136.5	25.73	2.12
132 × 102 × 8	6 × 4 × 5/16	15.19	19.44	20.64	12.7	472.7	45.58	4.93	173.1	22.1	2.98
132 × 102 × 10	6 × 4 × 3/8	18.31	23.29	22.23	12.7	560.6	54.4	4.91	203.9	26.22	2.96
132 × 102 × 11	6 × 4 × 7/16	21.28	26.97	23.81	12.7	643.5	62.76	4.88	233.1	30.31	2.94
132 × 102 × 13	6 × 4 × 1/2	24.11	30.65	25.4	12.7	723.8	70.96	4.86	261	34.08	2.92
132 × 102 × 16	6 × 4 × 5/8	29.76	37.81	28.58	12.7	877	87.02	4.82	313	41.62	2.88
132 × 102 × 19	6 × 4 × 3/4	35.12	44.77	31.75	12.7	1,020.2	102.42	4.77	361.3	48.67	2.84
132 × 102 × 22	6 × 4 × 7/8	40.48	51.48	34.9	12.7	1,154.2	117.17	4.73	405.8	55.55	2.80
132 × 102 × 25	6 × 4 × 1	45.84	58	38.1	12.7	1,280	131.5	4.70	447.5	62.2	2.78

Lo que manejamos a 6.10 m · Poltech

Ángulo de lados iguales

Buscar medida

Surtido comercial de Poltech en tramo de 6.10 m.

Ángulo a 6.10 m — 56 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m
2.8 x 25.4	.109" x 1	1.05
2.8 x 31.7	.109" x 1 1/4	1.33
2.8 x 38.1	.109" x 1 1/2	1.61
3.2 x 19.0	1/8 x 3/4	0.88
3.2 x 25.4	1/8 x 1	1.19
3.2 x 31.7	1/8 x 1 1/4	1.50
3.2 x 38.1	1/8 x 1 1/2	1.83
3.2 x 44.4	1/8 x 1 3/4	2.14
3.2 x 50.8	1/8 x 2	2.46
4.8 x 25.4	3/16 x 1	1.73
4.8 x 31.7	3/16 x 1 1/4	2.20
4.8 x 38.1	3/16 x 1 1/2	2.68
4.8 x 44.4	3/16 x 1 3/4	3.15
4.8 x 50.8	3/16 x 2	3.63
4.8 x 63.5	3/16 x 2 1/2	4.57
4.8 x 76.2	3/16 x 3	5.52
6.3 x 25.4	1/4 x 1	2.22
6.3 x 31.7	1/4 x 1 1/4	2.86
6.3 x 38.1	1/4 x 1 1/2	3.48
6.3 x 44.4	1/4 x 1 3/4	4.12
6.3 x 50.8	1/4 x 2	4.75
6.3 x 63.5	1/4 x 2 1/2	6.10
6.3 x 76.2	1/4 x 3	7.29
6.3 x 88.9	1/4 x 3 1/2	8.63
6.3 x 101.6	1/4 x 4	9.82
7.9 x 76.2	5/16 x 3	9.08
7.9 x 88.9	5/16 x 3 1/2	10.71
7.9 x 101.6	5/16 x 4	12.2
7.9 x 127.0	5/16 x 5	15.32
7.9 x 152.4	5/16 x 6	18.45
9.5 x 50.8	3/8 x 2	6.99
9.5 x 63.5	3/8 x 2 1/2	8.78
9.5 x 76.2	3/8 x 3	10.71
9.5 x 88.9	3/8 x 3 1/2	12.64
9.5 x 101.6	3/8 x 4	14.58
9.5 x 127.0	3/8 x 5	18.3
9.5 x 152.4	3/8 x 6	22.17
11.1 x 101.6	7/16 x 4	16.81
11.1 x 152.4	7/16 x 6	25.59
12.7 x 76.2	1/2 x 3	13.99
12.7 x 101.6	1/2 x 4	19.05
12.7 x 127.0	1/2 x 5	24.11
12.7 x 152.4	1/2 x 6	29.16
12.7 x 203.2	1/2 x 8	39.28
14.3 x 203.2	9/16 x 8	44.05
15.9 x 101.6	5/8 x 4	23.36
15.9 x 152.4	5/8 x 6	36.01
15.9 x 203.2	5/8 x 8	48.66
19.0 x 152.4	3/4 x 6	42.71
19.0 x 203.2	3/4 x 8	57.88
22.2 x 203.2	7/8 x 8	66.96
25.4 x 152.4	1 x 6	55.65
25.4 x 203.2	1 x 8	75.89
28.6 x 203.2	1 1/8 x 8	84.67
4.8 x 76.2 x 50.8	3/16 x 3 x 2	4.57
6.3 x 76.2 x 50.8	1/4 x 3 x 2	6.10

Lo que manejamos a 12.20 m · Poltech

Ángulo de lados iguales

Buscar medida

Surtido comercial de Poltech en tramo de 12.20 m.

Ángulo a 12.20 m — 48 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m
2.8 x 25.4	.109" x 1	1.05
2.8 x 31.7	.109" x 1 1/4	1.33
2.8 x 38.1	.109" x 1 1/2	1.61
3.2 x 38.1	1/8 x 1 1/2	1.83
3.2 x 44.4	1/8 x 1 3/4*	2.14
3.2 x 50.8	1/8 x 2	2.46
4.8 x 44.4	3/16 x 1 3/4	3.15
4.8 x 50.8	3/16 x 2	3.63
4.8 x 63.5	3/16 x 2 1/2	4.57
4.8 x 76.2	3/16 x 3	5.52
6.3 x 44.4	1/4 x 1 3/4	4.12
6.3 x 50.8	1/4 x 2	4.75
6.3 x 63.5	1/4 x 2 1/2	6.10
6.3 x 76.2	1/4 x 3	7.29
6.3 x 88.9	1/4 x 3 1/2	8.63
6.3 x 101.6	1/4 x 4	9.82
7.9 x 76.2	5/16 x 3	9.08
7.9 x 88.9	5/16 x 3 1/2	10.71
7.9 x 101.6	5/16 x 4	12.2
7.9 x 127.0	5/16 x 5	15.29
7.9 x 152.4	5/16 x 6	18.45
9.5 x 76.2	3/8 x 3	10.71
9.5 x 88.9	3/8 x 3 1/2	12.57
9.5 x 101.6	3/8 x 4	14.58
9.5 x 127.0	3/8 x 5	18.3
9.5 x 152.4	3/8 x 6	22.17
11.1 x 101.6	7/16 x 4	16.81
11.1 x 152.4	7/16 x 6	25.59
12.7 x 76.2	1/2 x 3	13.99
12.7 x 101.6	1/2 x 4	19.05
12.7 x 127.0	1/2 x 5	24.11
12.7 x 152.4	1/2 x 6	29.16
12.7 x 203.8	1/2 x 8	39.28
14.3 x 203.2	9/16 x 8	44.05
15.9 x 101.6	5/8 x 4	23.36
15.9 x 152.4	5/8 x 6	36.01
15.9 x 203.2	5/8 x 8	48.66
19.0 x 152.4	3/4 x 6	42.71
19.0 x 203.2	3/4 x 8	57.88
22.2 x 203.2	7/8 x 8	66.96
25.4 x 152.4	1 x 6	55.65
25.4 x 203.2	1 x 8	75.89
28.6 x 203.2	1 1/8 x 8	84.67
6.3 x 101.6 x 76.2	1/4 x 4 x 3	8.63
7.9 x 152.4 x 101.6	5/16 x 6 x 4	15.33
9.5 x 101.6 x 76.2	3/8 x 4 x 3	12.65
9.5 x 152.4 x 101.6	3/8 x 6 x 4	18.3
12.7 x 152.4 x 101.6	1/2 x 6 x 4	24.11

Perfil tubular

PTR cuadrado

Tubular de lado igual. Columna, marco y estructura a la vista.

Grados: ASTM A500 Gr. B · ASTM A513 · ASTM A36
Largo: 6.00 m y 12.20 m
Renglones: 109 en 2 tablas

Propiedades de sección · IMCA

PTR cuadrado / HSS

Buscar medida

TUBO CUADRADO — 59 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	I cm⁴	S cm³	r cm
25 × 2.4	1 × 0.095	1.62	2.07	1.75	1.38	0.92
25 × 3.4	1 × 0.133	2.10	2.68	2.01	1.58	0.87
38 × 2.8	1.5 × 0.110	2.95	3.74	7.56	3.96	1.42
38 × 3.2	1.5 × 0.125	3.29	4.17	8.21	4.30	1.40
51 × 2.8	2 × 0.110	4.00	5.11	19.04	7.49	1.93
51 × 3.2	2 × 0.125	4.54	5.79	21.4	8.42	1.92
51 × 4.0	2 × 0.156	5.45	6.97	24.7	9.72	1.88
51 × 4.8	2 × 0.188	6.45	8.19	27.8	10.95	1.84
51 × 6.4	2 × 0.250	8.05	10.26	31.88	12.55	1.76
64 × 3.2	2.5 × 0.125	5.84	7.40	44.07	13.88	2.44
64 × 3.6	2.5 × 0.141	6.47	8.26	48.3	15.2	2.42
64 × 4.8	2.5 × 0.188	8.32	10.58	59.1	18.68	2.36
64 × 6.4	2.5 × 0.250	10.58	13.48	70.34	22.12	2.28
76 × 3.2	3 × 0.125	7.12	9.01	79.83	20.71	2.95
76 × 4.8	3 × 0.188	10.2	13	108	28.3	2.90
76 × 6.4	3 × 0.250	13.11	16.71	131.53	34.41	2.79
76 × 7.9	3 × 0.313	15.74	20.1	149	39.17	2.72
89 × 3.2	3.5 × 0.125	8.39	10.62	128.53	28.91	3.47
89 × 4.0	3.5 × 0.156	10.2	13	154	34.6	3.45
89 × 4.8	3.5 × 0.188	12.1	15.4	179	40.1	3.40
89 × 6.3	3.5 × 0.250	15.64	19.9	220.2	50	3.33
89 × 7.9	3.5 × 0.313	18.9	24.06	253.5	57.05	3.25
102 × 4.8	4 × 0.188	14.02	17.87	274.3	54.08	3.91
102 × 6.3	4 × 0.250	18.17	23.16	342.14	67.35	3.84
102 × 9.5	4 × 0.375	25.7	32.77	445.37	87.67	3.68
102 × 12.7	4 × 0.500	32.19	41.03	511.96	100.45	3.53
127 × 4.8	5 × 0.188	17.81	22.71	557.75	87.93	4.95
127 × 6.3	5 × 0.250	23.25	29.61	703.43	111.1	4.88
127 × 9.5	5 × 0.375	33.29	42.45	949	149.29	4.72
127 × 12.7	5 × 0.500	42.31	53.94	1,123.82	177	4.57
152 × 4.8	6 × 0.188	21.62	27.55	990.63	129.95	5.99
152 × 6.3	6 × 0.250	28.3	36.1	1,261.18	165.51	5.92
152 × 7.9	6 × 0.313	34.73	44.26	1,510.92	198.28	5.84
152 × 9.5	6 × 0.375	40.89	52.13	1,731.52	227.78	5.77
152 × 12.7	6 × 0.500	52.44	67.1	2,101.97	275.3	5.61
178 × 4.8	7 × 0.188	25.42	32.39	1,602.49	180.26	7.04
178 × 6.4	7 × 0.250	33.36	42.52	2,056.18	231.1	6.96
178 × 7.9	7 × 0.313	41.06	52.32	2,476.58	278.58	6.88
178 × 9.5	7 × 0.375	48.48	61.81	2,859.51	321.19	6.81
178 × 12.7	7 × 0.500	62.58	80	3,251.32	396.57	6.65
203 × 4.8	8 × 0.188	29.21	37.23	2,422.47	239.25	8.08
203 × 6.4	8 × 0.250	38.42	48.97	3,125.9	308.1	8.00
203 × 7.9	8 × 0.313	47.38	60.39	3,783.54	372	7.92
203 × 12.7	8 × 0.500	72.7	92.9	5,452.63	539.13	7.69
203 × 15.8	8 × 0.625	88.28	112.28	6,368.34	627.62	7.52
254 × 6.4	10 × 0.250	48.56	61.87	6,285	493.23	10.1
254 × 7.9	10 × 0.313	60	76.77	7,617	601.41	9.98
254 × 9.5	10 × 0.375	71.28	90.97	8,907	703	9.91
254 × 12.7	10 × 0.500	92.95	118.71	11,280	881.18	9.75
254 × 15.8	10 × 0.625	113.6	144.52	13,361	1,052	9.60
305 × 6.4	12 × 0.250	58.68	74.84	11,030	722.67	12.14
305 × 7.9	12 × 0.313	72.71	92.9	13,486	884.9	12.06
305 × 9.5	12 × 0.375	86.46	110.32	15,817	1,039	12
305 × 12.7	12 × 0.500	113.2	144.52	20,187	1,325.71	11.84
356 × 7.9	14 × 0.313	85.56	109	21,727	1,222.48	14.15
356 × 9.5	14 × 0.375	101.66	129.68	25,598	1,440.42	14.07
356 × 12.7	14 × 0.500	133.46	170.32	32,924	1,851.74	13.92
406 × 7.9	16 × 0.313	98	125.16	32,841	1,615.76	16.21
406 × 9.5	16 × 0.375	116.85	149	38,751	1,900.9	16.13

Lo que manejamos · Poltech

PTR cuadrado (HSS)

Buscar medida

Surtido comercial de Poltech, norma ASTM A513.

PTR cuadrado — 50 secciones con dimensiones y propiedades
Designación pulg.	Norma	Calibre	Espesor pulg	Largo m	Peso kg/m	Pzas/paquete
1/2" x 1/2"	A513	20	0.036	6.00	0.34	—
1/2" x 1/2"	A513	18	0.048	6.00	0.44	—
5/8" x 5/8"	A513	20	0.036	6.00	0.43	—
5/8" x 5/8"	A513	18	0.048	6.00	0.56	—
3/4" x 3/4"	A513	20	0.036	6.00	0.52	—
3/4" x 3/4"	A513	18	0.048	6.00	0.68	—
3/4" x 3/4"	A513	16	0.06	6.00	0.84	—
3/4" x 3/4"	A513	14	0.075	6.00	1.02	—
1" x 1"	A513	20	0.036	6.00	0.70	—
1" x 1"	A513	18	0.048	6.00	0.92	—
1" x 1"	A513	16	0.06	6.00	1.14	—
1" x 1"	A513	14	0.075	6.00	1.40	—
1" x 1"	A513	13	0.09	6.00	1.65	—
1" x 1"	A513	12	0.105	6.00	1.90	—
1" x 1"	A500°B	11	0.12	6.00	1.94	—
1" x 1"	A500°B	10	0.135	6.00	2.12	—
1 1/4" x 1 1/4"	A513	20	0.036	6.00	0.88	—
1 1/4" x 1 1/4"	A513	18	0.049	6.00	1.16	—
1 1/4" x 1 1/4"	A513	16	0.06	6.00	1.44	—
1 1/4" x 1 1/4"	A513	14	0.075	6.00	1.78	—
1 1/4" x 1 1/4"	A513	12	0.105	6.00	2.42	—
1 1/2" x 1 1/2"	A513	20	0.036	6.00	1.06	—
1 1/2" x 1 1/2"	A513	18	0.048	6.00	1.40	—
1 1/2" x 1 1/2"	A513	16	0.06	6.00	1.74	—
1 1/2" x 1 1/2"	A513	14	0.075	6.00	2.15	—
1 1/2" x 1 1/2"	A513	12	0.105	6.00	2.95	—
1 1/2" x 1 1/2"	A500°B	11	0.12	6.00	3.15	—
1 1/2" x 1 1/2"	A500°B	9	0.15	6.00	3.79	—
2" x 2"	A513	18	0.048	6.00	1.89	—
2" x 2"	A513	16	0.06	6.00	2.35	—
2" x 2"	A513	14	0.075	6.00	2.91	—
2" x 2"	A513	12	0.105	6.00	4.01	—
2" x 2"	A500°B	11	0.12	6.00	4.36	—
2" x 2"	A500°B	10	0.135	6.00	4.84	—
2" x 2"	A513	9	0.15	6.00	5.31	—
2" x 2"	A500°B	7	0.18	6.10	6.43	—
2 1/2" x 2 1/2"	A513	14	0.075	6.00	3.67	—
2 1/2" x 2 1/2"	A513	12	0.105	6.00	5.07	—
2 1/2" x 2 1/2"	A500°B	11	0.12	6.00	5.57	—
2 1/2" x 2 1/2"	A500°B	10	0.135	6.00	6.20	—
2 1/2" x 2 1/2"	A500°B	7	0.18	6.10	8.34	—
3" x 3"	A513	14	0.075	6.00	4.42	—
3" x 3"	A500°B	11	0.12	—	6.78	—
3" x 3"	A500°B	9	0.15	6.10	8.33	—
3" x 3"	A500°B	7	0.18	6.10	10.24	—
3 1/2" x 3 1/2"	A500°B	11	0.12	6.10	7.99	—
3 1/2" x 3 1/2"	A500°B	9	0.15	6.10	9.85	—
3 1/2" x 3 1/2"	A500°B	7	0.18	6.10	12.14	—
4" x 4"	A513	14	0.075	6.00	5.93	—
4" x 4"	A500°B	9	0.15	6.10	11.36	—

Perfil tubular

PTR rectangular

Tubular de lados distintos. Larguero, bastidor y herrería estructural.

Grados: ASTM A500 Gr. B · ASTM A513 · ASTM A36
Largo: 6.00 m y 12.20 m
Renglones: 143 en 2 tablas

Propiedades de sección · IMCA

PTR rectangular / HSS

Buscar medida

TUBO RECTANGULAR — 95 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Área cm²	Ix cm⁴	Sx cm³	rx cm	Iy cm⁴	Sy cm³	ry cm
76 × 51 × 3.20	3 × 0.125	5.84	7.40	57.41	15.07	2.78	15.07	12.02	2.03
76 × 51 × 3.60	—	6.47	8.26	63.3	16.6	2.77	16.6	13.2	2.01
76 × 51 × 4.80	0.188	10.58	—	77.42	20.32	2.69	40.67	16	1.96
76 × 51 × 6.40	0.25	8.32	—	92	24.1	1.62	47.87	18.85	1.88
102 × 51 × 3.20	4 × 2 × 0.125	7.12	9.01	117.34	23.09	3.60	39.69	15.62	2.09
102 × 51 × 4.80	4 × 2 × 0.188	10.2	13	161	31.8	3.51	53.7	21.1	2.03
102 × 51 × 6.40	4 × 2 × 0.25	13.11	16.71	195.27	38.51	3.43	64.1	25.24	1.96
102 × 51 × 7.90	4 × 2 × 0.313	15.74	20.1	221.44	43.6	3.33	71.18	28.02	1.89
102 × 72 × 3.20	4 × 3 × 0.125	8.39	10.62	156.41	20.79	3.93	100.45	26.36	3.07
102 × 72 × 4.00	4 × 3 × 0.156	10.2	13	187	36.9	3.81	120	31.5	3.05
102 × 72 × 4.80	4 × 3 × 0.188	21.1	—	218	42.9	3.76	139	36.5	3.00
102 × 72 × 6.40	4 × 3 × 0.25	15.6	19.9	269	52.9	3.67	171	44.8	2.93
102 × 72 × 7.90	4 × 3 × 0.313	18.9	24.1	310.1	60.96	3.58	196	51.46	2.84
127 × 51 × 4.80	5 × 2 × 0.188	12.13	15.42	286.78	45.6	4.32	66.6	26.22	2.06
127 × 51 × 6.40	5 × 2 × 0.25	15.64	19.94	352.96	55.55	4.22	79.92	31.46	1.98
127 × 51 × 7.90	5 × 2 × 0.313	18.9	24.1	405.51	63.91	4.11	89.91	35.4	1.93
127 × 76 × 4.80	5 × 3 × 0.188	14	17.87	377.11	59.32	4.60	169.82	44.57	3.07
127 × 76 × 6.40	5 × 3 × 0.25	18.17	23.16	470.34	74.4	4.50	210.2	55.22	3.02
127 × 76 × 7.90	5 × 3 × 0.313	22.1	28.13	549.43	86.36	4.42	243.5	63.91	2.95
127 × 76 × 9.50	5 × 3 × 0.375	25.7	—	611.86	95.52	4.32	269.72	70.79	2.37
127 × 76 × 12.70	5 × 3 × 0.5	32.2	41.03	703.43	110.61	4.14	305.1	80	2.72
127 × 102 × 6.40	5 × 4 × 0.25	20.7	26.39	586.88	92.6	4.72	415.4	81.77	3.96
127 × 102 × 7.90	5 × 4 × 0.313	25.24	32.13	690.44	108.97	4.65	487	95.86	3.89
127 × 102 × 9.50	5 × 4 × 0.375	29.59	37.61	778.35	122.9	4.55	549.43	107.83	3.81
152 × 51 × 4.80	6 × 2 × 0.188	14.1	17.87	462	60.63	5.08	79.1	31.35	2.11
152 × 51 × 6.40	6 × 2 × 0.25	18.17	23.16	547.4	75.38	4.98	96.15	37.85	2.04
152 × 51 × 7.90	6 × 2 × 0.313	22.1	28.13	666	87.51	4.88	109.1	42.93	1.97
152 × 51 × 9.50	6 × 2 × 0.375	27.7	—	740.9	97.34	4.75	118.24	46.54	1.90
152 × 76 × 4.80	6 × 3 × 0.188	15.92	20.26	595.21	78	5.41	201	52.77	3.15
152 × 76 × 6.40	6 × 3 × 0.25	20.7	26.39	745.1	98	5.31	249.74	65.55	3.07
152 × 76 × 7.90	6 × 3 × 0.313	25.24	32.13	878.25	115.2	5.23	290.53	76.2	3.00
152 × 76 × 9.50	6 × 3 × 0.375	29.5	37.61	990.23	129.78	5.13	323.83	85	2.95
152 × 102 × 4.8	6 × 4 × 0.188	17.81	22.71	724.24	95.21	5.66	397.93	76.36	4.14
152 × 102 × 6.40	6 × 4 × 0.25	23.24	29.61	919.87	120.61	5.56	487	96.19	4.06
152 × 102 × 7.90	6 × 4 × 0.313	28.39	36.19	1,090.53	142.9	5.49	574.4	133.4	3.99
152 × 102 × 9.50	6 × 4 × 0.375	19.09	—	1,236.9	162.23	5.41	649.32	128.15	3.91
152 × 102 × 12.70	6 × 4 × 0.5	42.31	53.94	1,469.3	193.37	5.23	765.87	150.92	3.76
178 × 76 × 4.80	7 × 3 × 0.188	17.81	22.71	878.25	98.65	6.22	231.84	60.8	3.20
178 × 76 × 6.40	7 × 3 × 0.25	23.25	29.61	1,107.18	124.71	6.12	289.28	75.87	3.12
178 × 76 × 7.90	7 × 3 × 0.313	28.4	36.19	1,311.13	147.48	6.02	337.56	88.65	3.05
178 × 76 × 9.50	7 × 3 × 0.375	33.3	42.45	1,486	167.15	5.92	278	99.14	2.99
178 × 102 × 4.80	7 × 4 × 0.188	19.72	25.1	1,057.23	118.97	6.48	445.37	87.51	4.22
178 × 102 × 6.40	7 × 4 × 0.25	25.77	32.84	1,344.43	151.22	6.40	561.91	110.61	4.14
178 × 102 × 7.90	7 × 4 × 0.313	31.56	40.19	1,602.5	180.23	6.32	666	130.77	4.06
178 × 102 × 9.50	7 × 4 × 0.375	37.1	47.29	1,831.41	206.48	6.22	753.38	148.47	3.99
178 × 127 × 4.80	7 × 5 × 0.188	21.62	27.55	1,210.37	139.3	6.71	736.73	116.35	5.18
178 × 127 × 6.40	7 × 5 × 0.25	28.3	—	1,581.68	178.62	6.63	94.68	148.14	5.10
178 × 127 × 7.90	7 × 5 × 0.313	34.73	44.26	1,893.85	213.03	6.55	1,119.66	177	5.03
178 × 127 × 9.50	7 × 5 × 0.375	40.89	52.13	2,172.73	244.17	6.45	1,282	201.56	4.95
178 × 127 × 12.70	7 × 5 × 0.5	52.44	67.1	2,643.1	296.61	6.30	1,548.4	244.17	4.83
203 × 51 × 4.80	8 × 2 × 0.188	17.81	22.71	994.8	97.83	6.60	105	41.3	2.15
203 × 51 × 6.40	8 × 2 × 0.25	23.25	29.61	1,252.86	123.23	6.50	128.2	50.47	2.08
203 × 51 × 7.90	8 × 2 × 0.313	28.4	36.19	1,477.63	145.35	6.38	146.51	57.68	2.01
203 × 51 × 9.50	8 × 2 × 0.375	33.3	42.45	1,669.1	163.87	6.27	160.25	63.1	1.94
203 × 76 × 4.80	8 × 3 × 0.188	19.72	25.1	1,232	121.9	7.01	262.64	69	3.23
203 × 76 × 6.40	8 × 3 × 0.25	25.77	32.84	1,565	154	6.91	328.82	86.2	3.18
203 × 76 × 7.90	8 × 3 × 0.313	31.56	40.19	1,861	184.5	6.81	385	100.91	3.10
203 × 76 × 9.50	8 × 3 × 0.375	37.1	47.29	2,122.8	280.12	6.71	432.88	113.4	3.02
203 × 102 × 4.8	8 × 4 × 0.188	21.62	27.55	1,469.3	144.7	7.32	449.48	98.65	4.27
203 × 152 × 4.80	8 × 6 × 0.188	25.42	32.39	1,984	191.73	7.75	1,252.86	163.87	6.22
254 × 51 × 4.80	10 × 2 × 0.188	21.62	27.55	1,818.93	143.22	8.13	130.7	51.46	2.18
254 × 102 × 4.80	10 × 4 × 0.188	25.42	32.39	2,568.15	201.56	8.91	616.02	121.1	4.37
254 × 152 × 4.80	10 × 6 × 0.188	29.21	37.23	3,321.53	262.2	9.45	1,519.24	199.92	6.38
305 × 51 × 4.8	12 × 2 × 0.188	25.42	32.39	2,996.9	196.64	9.62	156.5	61.62	2.20
305 × 51 × 6.40	12 × 2 × 0.25	33.36	42.52	3,837.65	252.36	9.50	192.3	75.71	2.13
305 × 102 × 4.80	12 × 4 × 0.188	29.22	37.23	4,087.4	268.75	10.5	728.4	143.39	4.42
305 × 102 × 6.40	12 × 4 × 0.25	38.42	48.97	5,286.14	345.77	10.39	928.2	181.9	4.34
305 × 102 × 7.90	12 × 4 × 0.313	47.38	60.39	6,368.34	—	10.29	1,107.18	217.95	—
305 × 102 × 8.50	12 × 4 × 0.375	56.1	71.61	7,408.92	485.1	10.19	1,269.51	249.1	4.22
305 × 102 × 12.70	12 × 4 × 0.5	72.7	92.9	9,198.71	603	9.96	1,535.89	303.16	4.06
305 × 152 × 4.80	12 × 6 × 0.188	33	42.06	5,161.27	339.21	11.11	1,781.47	234.34	6.50
305 × 152 × 6.40	12 × 6 × 0.25	43.5	55.42	6,701.33	440.81	11	2,297.6	301.52	6.43
305 × 152 × 7.90	12 × 6 × 0.313	53.72	68.39	8,158.14	534.2	10.92	2,772.1	363.8	6.38
305 × 152 × 9.50	12 × 6 × 0.375	63.68	81.29	9,490	624.35	10.82	3,213.31	421.15	6.30
305 × 152 × 12.70	12 × 6 × 0.5	82.83	105.81	11,915.84	783.3	10.64	3,995.82	524.4	6.15
305 × 203 × 6.40	12 × 8 × 0.25	48.56	61.87	8,158.14	534.22	11.48	4,370.43	431	8.41
305 × 203 × 7.90	12 × 8 × 0.313	60.05	76.77	9,947.93	652.21	11.4	5,327.76	524.4	8.33
305 × 203 × 9.50	12 × 8 × 0.375	71.28	90.97	11,612.86	762	11.3	6,201.85	611.24	8.28
305 × 203 × 12.70	12 × 8 × 0.5	92.95	118.71	14,693	965.2	11.15	7,825.15	768.56	8.13
305 × 203 × 15.80	12 × 8 × 0.625	113.59	144.52	17,398.47	1,142.18	10.97	9,198.71	906.2	7.98
356 × 102 × 7.90	14 × 4 × 0.313	53.72	68.39	9,573.32	537.5	11.81	1,286.16	252.36	4.34
356 × 102 × 9.50	14 × 4 × 0.375	63.68	81.29	11,113.38	625.98	11.7	1,473.46	290.1	4.27
356 × 102 × 12.70	14 × 4 × 0.5	82.83	105.81	13,943.75	783.3	11.48	1,783.96	352.32	4.11
356 × 152 × 6.40	14 × 6 × 0.25	48.56	61.87	9,864.68	553.9	12.62	2,638.91	345.77	6.53
356 × 152 × 7.90	14 × 6 × 0.313	60.05	76.77	11,987.47	675.15	12.52	3,192.5	419.51	6.45
356 × 152 × 9.50	14 × 6 × 0.375	71.28	90.97	14,027	788.22	12.42	3,708.62	486.7	6.40
356 × 152 × 12.70	14 × 6 × 0.5	92.95	118.71	17,731.46	996.33	12.24	4,620.17	608	6.25
356 × 254 × 7.9	14 × 10 × 0.313	72.71	92.9	16,857.37	948.81	13.49	10,072.8	793.13	10.49
406 × 102 × 7.90	16 × 4 × 0.313	60.05	76.77	13,610.77	670.23	13.33	1,451	288.41	4.37
406 × 203 × 7.90	16 × 8 × 0.313	72.71	92.9	20,020.73	984.86	14.7	6,867.82	675.15	8.61
406 × 305 × 7.90	16 × 12 × 0.313	85.36	109	26,430.7	1,301.13	15.6	17,023.9	1,117.6	12.52
457 × 152 × 7.90	18 × 6 × 0.313	72.71	92.9	22,726.24	994.7	15.67	4,037.44	529.3	6.60
508 × 102 × 7.90	20 × 4 × 0.313	72.71	92.9	24,807.4	976.67	16.36	1,818.93	357.24	4.42
508 × 203 × 7.90	20 × 8 × 0.313	85.36	109	34,880.2	1,373.24	17.9	8,407.87	825.91	8.79
508 × 305 × 7.90	20 × 12 × 0.313	98.02	125.16	44,953	1,769.8	18.93	20,603.5	1,352	12.85

Lo que manejamos · Poltech

PTR rectangular (HSS)

Buscar medida

Surtido comercial de Poltech, norma ASTM A513.

PTR rectangular — 48 secciones con dimensiones y propiedades
Designación pulg.	Norma	Calibre	Espesor pulg	Largo m	Peso kg/m	Pzas/paquete	Agregar a la lista
1" x1/2"	A513	18	0.048	6.00	0.68	120
1 1/4" x 3/4"	A513	20	0.036	6.00	0.70	99
1 1/4" x 3/4"	A513	18	0.048	6.00	0.92	99
1 1/2" x 1/2"	A513	20	0.036	6.00	0.70	98
1 1/2" x 1/2"	A513	18	0.048	6.00	0.92	98
1/2" x 1"	A513	20	0.036	6.00	0.88	84
1/2" x 1"	A513	18	0.048	6.00	1.16	84
1/2" x 1"	A513	16	0.06	6.00	1.44	100
1/2" x 1"	A513	14	0.075	6.00	1.78	84
1/2" x 1"	A513	11	0.12	6.00	2.55	63
1 3/4"» x 3/4"	A513	20	0.036	6.00	0.88	84
1 3/4"» x 3/4"	A513	18	0.048	6.00	1.16	84
2" x 1"	A513	20	0.036	6.00	1.06	50
2" x 1"	A513	18	0.048	6.00	1.40	50
2" x 1"	A513	14	0.075	6.00	2.15	80
2" x 1"	A500°B	11	0.12	6.00	3.15	80
2 1/4" x 3/4"	A513	20	0.036	6.00	1.06	55
2 1/4" x 3/4"	A513	18	0.048	6.00	1.40	55
2 1/2" x 1 1/4"	A513	20	0.075	6.00	1.34	54
2 1/2" x 1 1/4"	A513	18	0.075	6.00	1.77	54
2 1/2" x 1 1/4"	A513	14	0.075	6.00	—	—	—
2 1/2"» x 1 1/2"	A513	14	0.075	6.00	2.91	48
3" x 1"	A513	18	0.048	6.00	1.89	48
3" x 1"	A513	16	0.06	6.00	2.35	48
3" x 1"	A513	14	0.075	6.00	2.91	48
3" x 1"	A513	11	0.12	6.00	4.36	48
3" x 1"	A513	10	0.135	6.00	—	48	—
3" x 1 1/2"	A513	20	0.036	6.00	1.61	48
3" x 1 1/2"	A513	18	0.048	6.00	2.13	70
3" x 1 1/2"	A513	14	0.075	6.00	3.29	70
3" x 1 1/2"	A500°B	11	0.12	6.00	4.90	70
3" x 2"	A513	14	0.075	6.00	3.67	49
3" x 2"	A500°B	11	0.12	6.00	5.57	42
3" x 2"	A500°B	10	0.135	6.00	6.20	42
3" x 2"	A500°B	7	0.18	6.10	8.34	36
4" x 1 1/2"	A513	14	0.075	6.00	4.04	35
4" x 2"	A513	14	0.075	6.10	4.42	40
4" x 2"	A500°B	11	0.12	6.10	6.78	32
4" x 2"	A500°B	9	0.15	6.10	8.33	32
4" x 2"	A500°B	7	0.18	6.10	10.24	28
4" x 3"	A513	14	0.075	6.00	5.18	40
4" x 3"	A500°B	11	0.12	6.10	7.99	30
4" x 3"	A500°B	9	0.15	—	9.85	25
4" x 3"	A500°B	7	0.18	6.10	12.14	20
5" x 2"	A500°B	11	0.12	6.10	7.99	20
5" x 2"	A500°B	7	0.18	6.10	12.14	20
5" x 3"	A513	14	0.075	6.00	5.93	35
6" x 2"	A513	14	0.075	6.00	5.93	16

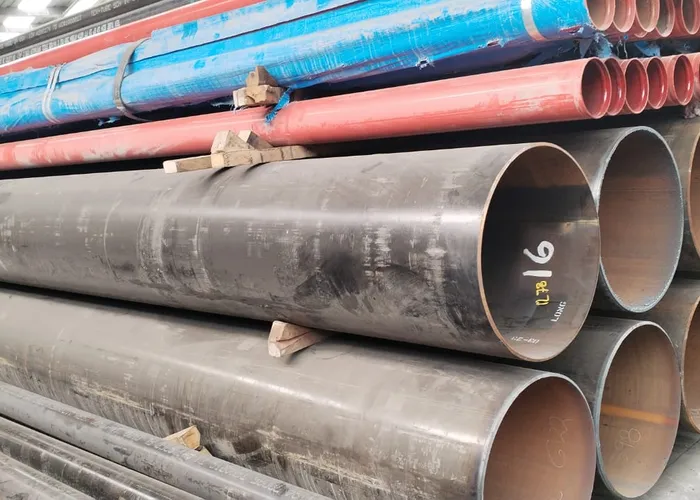

Perfil tubular

Tubería

Tubo circular. Estructura tubular y conducción de fluido.

Grados: ASTM A53 · ASTM A106 · API 5L Gr. B
Largo: 6.00 m
Renglones: 149 en 2 tablas

Propiedades de sección · IMCA

Tubería redonda / HSS circular

Buscar medida

TUBO CIRCULAR — 127 secciones con dimensiones y propiedades
Designación mm	pulg.	Ø int. mm	Peso kg/m	Área cm²	I cm⁴	S cm³	r cm	Cédula
21 × 2.77	0.84 × 0.110	15.76	1.27	1.61	0.71	0.66	0.66	40
21 × 3.73	0.84 × 0.147	13.84	1.62	2.06	0.83	0.78	0.64	80
27 × 2.87	1.05 × 0.113	20.96	1.69	2.15	1.55	1.16	0.85	40
27 × 3.91	1.05 × 0.154	18.88	2.20	2.80	1.87	1.40	0.82	80
33 × 3.38	1.315 × 0.133	26.64	2.50	3.19	3.64	2.18	1.07	40
33 × 4.55	1.315 × 0.179	24.3	3.24	4.12	4.40	2.63	1.03	80
42 × 3.56	1.66 × 0.140	35.08	3.39	4.32	8.13	3.85	1.37	40
42 × 4.85	1.66 × 0.191	32.5	4.47	5.69	10.09	4.78	1.33	80
48 × 3.68	1.9 × 0.145	40.94	4.05	5.16	12.93	5.35	1.58	40
48 × 5.08	1.9 × 0.200	38.14	5.41	6.90	16.33	6.76	1.54	80
60 × 3.91	2.375 × 0.154	52.48	5.44	6.93	27.66	9.18	2.00	40
60 × 5.54	2.375 × 0.218	49.22	7.48	9.53	36.09	11.97	1.95	80
60 × 8.74	2.375 × 0.344	42.82	11.11	14.16	48.4	16.05	1.85	160
73 × 5.16	2 × 7/8	62.68	8.63	11	63.63	17.43	2.41	40
73 × 7.01	2 × 0.276	58.98	11.41	14.53	80	21.92	2.35	80
73 × 9.53	2 × 0.375	53.94	14.92	19	97.85	26.81	2.27	160
73 × 14.02	—	0.55	44.96	—	25.98	119.34	32.7	2.14
89 × 5.49	3.5 × 0.216	77.92	11.29	14.39	125.65	28.27	2.96	40
89 × 7.62	3.5 × 0.300	73.66	15.27	19.46	162.09	36.47	2.89	80
89 × 11.13	3.5 × 0.438	66.64	21.35	27.19	209.8	47.2	2.78	160
89 × 15.24	—	0.6	58.42	—	35.27	249.43	56.11	2.66
102 × 5.74	4 × 0.226	90.12	13.57	17.29	199.27	39.23	3.40	40
102 × 8.08	4 × 0.318	85.44	18.64	23.74	261.47	51.47	3.32	80
114 × 6.02	4.5 × 0.237	102.26	16.08	20.48	301.05	52.68	3.83	40
114 × 8.56	4.5 × 0.337	97.18	22.32	28.44	400.03	70	3.75	80
114 × 11.13	4.5 × 0.438	92.04	28.32	36.07	485.56	84.96	3.67	120
114 × 13.49	4.5 × 0.531	87.32	33.54	42.72	552.45	96.67	3.60	160
114 × 17.12	—	0.67	80.06	—	52.27	636.16	111.31	3.49
141 × 6.55	5.56 × 0.258	128.2	21.77	27.73	630.83	89.29	4.77	40
141 × 9.53	5.56 × 0.375	122.24	30.97	39.45	860.73	121.83	4.67	80
141 × 12.7	5.56 × 0.500	115.9	40.28	51.31	1,071.03	151.6	4.57	120
141 × 15.88	5.56 × 0.652	109.54	49.12	62.57	1,250.02	176.93	4.47	160
141 × 19.05	—	0.75	103.2	—	73.16	1,399.98	198.16	4.37
168 × 7.11	6.63 × 0.280	154.08	28.26	36	1,171.63	139.23	5.70	40
168 × 10.97	6.63 × 0.432	146.36	42.56	54.22	1,685.81	200.33	5.58	80
168 × 14.27	6.63 × 0.562	139.76	54.21	69.05	2,065.43	245.45	5.47	120
168 × 18.26	6.63 × 0.719	131.78	67.57	86.07	2,457.92	292.09	5.34	160
168 × 21.95	—	0.86	124.4	—	100.92	2,762.7	328.31	5.23
219 × 6.35	8.63 × 0.250	206.4	33.32	42.44	2,403.4	219.39	7.53	20
219 × 7.04	8.63 × 0.277	205.02	36.82	46.9	2,639.28	240.92	7.50	30
219 × 8.18	8.63 × 0.322	202.74	42.55	54.2	3,018.69	275.55	7.46	40
219 × 10.31	8.63 × 0.406	198.48	53.09	67.63	3,694.07	337.2	7.39	60
219 × 12.7	8.63 × 0.500	193.7	64.64	82.35	4,401.83	401.81	7.31	80
219 × 15.09	8.63 × 0.594	188.92	75.92	96.71	5,059.09	461.81	7.23	100
219 × 18.25	8.63 × 0.719	182.6	90.4	115.16	5,854.75	534.44	7.13	120
219 × 20.62	8.63 × 0.812	177.86	100.93	128.57	6,399.72	584.18	7.06	140
219 × 22.23	—	0.88	174.64	—	137.49	6,745.91	615.78	7
273 × 6.35	10.75 × 0.250	260.4	41.77	53.21	4,735.77	346.82	9.43	20
273 × 7.8	10.75 × 0.307	257.5	51.03	65.01	5,724.55	419.23	9.38	30
273 × 9.27	10.75 × 0.365	254.56	60.31	76.83	6,693.37	490.18	9.33	40
273 × 12.7	10.75 × 0.500	247.7	81.56	103.89	8,827.05	646.43	9.22	60
273 × 15.09	10.75 × 0.594	242.92	96.02	122.31	10,212.7	747.91	9.14	80
273 × 18.26	10.75 × 0.719	236.58	114.76	146.19	11,928.5	873.56	9.03	100
273 × 21.44	10.75 × 0.844	230.22	133.06	169.51	13,516.6	989.86	8.93	120
324 × 6.35	12.75 × 0.250	311.2	49.73	63.35	7,989.09	493.24	11.23	20
324 × 8.38	12.75 × 0.330	307.14	65.21	83.03	10,344	638.7	11.2	30
324 × 9.53	—	0.38	304.84	—	94.12	11,637.8	718.6	11.1
324 × 10.31	0.406	303.28	79.73	101.57	12,498.8	771.8	11.1	40
324 × 12.7	—	0.5	298.5	—	124.16	15,055.8	929.7	11
324 × 14.27	0.562	295.36	108.96	138.81	16,669.9	1,029.3	11	60
324 × 17.48	0.668	288.94	132.09	168.27	19,813.5	1,223.4	10.9	80
324 × 21.44	0.844	281.02	159.92	203.72	23,413.4	1,445.7	10.7	100
356 × 6.35	14 × 0.250	342.9	54.69	69.67	10,626.3	597.7	12.4	10
356 × 7.92	14 × 0.312	339.76	67.91	86.51	13,078.2	735.6	12.3	20
356 × 9.53	14 × 0.375	336.54	81.33	103.61	15,522.9	873.1	12.2	30
356 × 11.13	14 × 0.438	333.34	94.55	120.45	17,883.9	1,005.8	12.2	40
356 × 12.7	—	0.5	320.2	—	136.81	20,135.5	1,132.5	12.1
356 × 15.09	0.594	325.42	126.72	161.42	23,441.8	1,318.4	12.1	60
356 × 19.05	0.750	317.5	158.11	201.42	28,608.4	1,609	11.9	80
356 × 23.83	0.938	309.94	194.97	248.37	34,350	1,932	11.8	100
406 × 6.35	16 × 0.250	393.7	62.65	79.81	15,969.6	785.9	14.2	10
406 × 7.92	16 × 0.312	390.56	77.83	99.15	19,686.9	968.8	14.1	20
406 × 9.53	16 × 0.375	387.34	93.27	118.82	23,407.2	1,151.9	14	30
406 × 12.7	16 × 0.500	381	123.31	157.08	30,465.7	1,499.3	13.9	40
406 × 16.66	16 × 0.659	373.08	160.13	203.99	38,801.9	1,909.5	13.8	60
406 × 21.44	16 × 0.844	363.52	203.54	259.29	48,181.1	2,371.1	13.6	80
457 × 6.35	18 × 0.250	444.3	70.57	89.9	22,826.9	999	15.9	10
457 × 7.92	18 × 0.312	441.16	87.72	111.74	28,177.3	1,233.1	15.9	20
457 × 11.13	18 × 0.438	434.74	122.38	155.9	38,766.1	1,696.6	15.8	30
457 × 12.7	—	0.5	431.6	—	177.27	43,777.3	1,915.9	15.7
457 × 14.27	0.562	428.46	155.81	198.48	48,680.2	2,130.4	15.7	40
457 × 19.05	0.750	418.9	205.75	262.1	62,958	2,755.3	15.5	60
457 × 23.83	0.938	409.34	254.57	324.29	76,291.1	3,338.8	15.3	80
508 × 6.35	20 × 0.250	495.3	78.56	100.07	31,485	1,239.6	17.7	10
508 × 9.53	20 × 0.375	488.94	117.15	149.24	46,369.3	1,825.6	17.6	20
508 × 12.7	20 × 0.500	482.6	155.13	197.62	60,639.4	2,387.4	17.5	30
508 × 15.09	20 × 0.594	477.82	183.43	233.67	71,032.8	2,796.6	17.4	40
508 × 20.62	20 × 0.812	466.76	247.84	315.72	93,913.6	3,697.4	17.3	60
610 × 6.35	24 × 0.250	597.3	94.53	120.42	54,857.4	1,798.6	21.3	10
610 × 9.53	24 × 0.375	590.94	141.12	179.77	81,045.4	2,657.2	21.2	20
610 × 12.7	—	0.5	584.6	—	238.31	106,325	3,486.1	21.1
610 × 14.27	0.562	581.46	209.65	267.07	118,543	3,886.1	21.1	30
610 × 17.48	0.668	575.04	255.42	325.38	142,917	4,685.8	21	40
610 × 24.61	0.969	560.78	655.28	—	194,210	6,367.5	20.7	60
762 × 6.35	30 × 0.250	794.3	118.34	150.75	107,602.64	2,824.25	26.72	10
762 × 7.92	—	0.31	749.16	—	187.63	133,377.27	3,500.75	26.66
762 × 9.53	0.375	742.94	176.85	225.28	159,472.79	4,185.68	26.61	20
762 × 12.7	0.500	736.6	234.68	298.96	209,870.86	5,508.48	26.5	30
762 × 15.88	0.625	730.24	292.2	372.23	259,137.17	6,801.47	26.39	—
762 × 19.05	0.750	723.9	349.04	444.64	306,983.94	8,057.4	26.28	—
914 × 7.92	36 × 0.312	898.16	176.97	225.45	231,373.96	5,062.94	32.04	10
914 × 9.53	—	0.38	894.94	—	270.79	276,936.94	6,059.94	31.98
914 × 12.7	0.500	888.6	282.29	359.6	365,219.98	7,991.77	31.87	20
914 × 15.88	0.625	882.24	351.73	448.06	451,903.63	9,888.58	31.76	30
914 × 19.05	0.750	875.9	420.45	535.6	536,468.85	11,739.04	31.65	40
914 × 22.23	0.875	869.54	488.89	622.79	619,475.74	13,555.41	31.54	—
1067 × 9.53	42 × 0.375	42	1,047.94	—	316.6	442,576.97	8,295.81	37.39
1067 × 12.7	—	0.5	1,041.6	—	420.65	584,542.15	10,956.85	37.28
1067 × 19.05	0.750	1,028.9	492.33	627.17	861,225.01	16,143.09	37.06	—
1067 × 22.23	0.875	1,022.54	572.77	729.64	995,989.12	18,669.15	36.95	—
1067 × 25.4	1.000	1,016.2	652.46	831.16	1,127,849.85	21,140.79	36.84	—
1219 × 9.53	48 × 0.375	48	1,199.94	—	363.11	66,158.02	10,864.07	42.76
1219 × 12.7	—	0.5	1,193.6	—	481.29	875,536.62	14,364.98	42.65
1219 × 15.88	0.625	1,187.24	471.17	600.22	1,086,199.17	17,821.83	42.54	—
1219 × 19.05	0.750	1,180.9	563.74	718.14	1,292,856.59	21,211.97	42.43	—
1422 × 9.53	56 × 0.375	1,402.94	331.96	422.88	1,054,646.33	14,833.43	49.94	—
1422 × 12.7	56 × 0.500	1,396.6	441.39	562.29	1,386,065.58	19,635.44	49.83	—
1422 × 15.88	56 × 0.625	1,390.24	550.67	701.49	1,733,921.85	24,387.33	49.72	—
1422 × 19.05	56 × 0.750	1,393.9	659.11	839.63	2,066,132.19	29,059.82	49.61	—
1422 × 22.23	56 × 0.875	1,377.54	767.39	977.57	2,394,834.49	33,682.97	49.5	—
1422 × 25.4	56 × 1.000	1,371.2	874.83	1,114.44	2,718,003.02	38,228.88	49.39	—
1524 × 9.53	60 × 0.375	1,504.94	355.94	453.42	1,300,015.71	17,060.75	53.55	—
1524 × 12.7	60 × 0.500	1,498.6	473.34	602.98	1,721,642.25	22,593.96	53.43	—
1524 × 15.88	60 × 0.625	1,492.24	560.62	752.38	2,139,256.32	28,074.52	53.32	—
1524 × 19.05	60 × 0.750	1,485.9	707.03	900.67	2,550,276.41	33,468.54	53.21	—
1524 × 22.23	60 × 0.875	1,479.54	823.31	1,048.8	2,957,340.72	38,810.64	53.1	—
1524 × 25.4	60 × 1.000	1,473.2	938.73	1,195.83	3,356,933.74	44,067.82	52.99	—

Lo que manejamos · Poltech

Tubo negro sin costura

Tri-norma ASTM A53 / ASTM A106 / API 5L Gr. B, en tramo de 6 metros. Hasta 1 1/2" va en corte recto; de 2" en adelante con extremos biselados.

Tubería de acero — 22 secciones con dimensiones y propiedades
Diámetro mm	pulg.	Ø exterior mm	Esp. STD/40 mm	Peso STD/40 kg/m	Esp. XS/80 mm	Peso XS/80 kg/m	Esp. ced. 160 mm	Peso ced. 160 kg/m
13.7	1/4"	13.7	2.24	0.63	3.02	0.80	—	—
17.1	3/8"	17.1	2.31	0.84	3.2	1.10	—	—
21.3	1/2"	21.3	2.77	1.27	3.73	1.62	4.78	1.95
26.7	3/4"	26.7	2.87	1.69	3.91	2.20	5.56	2.90
33.4	1"	33.4	3.38	2.50	4.55	3.24	6.35	4.24
42.2	1 1/4"	42.2	3.56	3.39	4.85	4.47	6.35	5.61
48.3	1 1/2"	48.3	3.68	4.05	5.08	5.41	7.14	7.25
60.3	2"	60.3	3.91	5.44	5.54	7.48	8.74	11.11
73.0	2 1/2"	73	5.16	8.63	7.01	11.41	9.53	14.92
88.9	3"	88.9	5.49	11.29	7.62	15.27	11.13	21.35
114.3	4"	114.3	6.02	16.07	8.56	22.32	13.49	33.54
141.3	5"	141.3	6.55	21.77	9.53	30.97	15.88	49.12
168.3	6"	168.3	7.11	28.26	10.97	42.56	18.26	67.57
219.1	8"	219.1	8.18	42.55	12.7	64.64	23.01	111.27
273.0	10"	273	9.27	60.29	12.7	81.55	28.58	172.27
323.8	12"	323.8	9.53	73.88	12.7	97.46	33.32	238.69
355.6	14"	355.6	9.53	81.33	12.7	107.39	35.71	281.72
406.4	16"	406.4	9.53	93.27	12.7	123.3	40.49	365.38
457.0	18"	457	9.53	105.16	12.7	139.15	45.24	459.39
508.0	20"	508	9.53	117.15	12.7	155.12	50.01	564.85
559.0	22"	559	9.53	129.13	12.7	171.09	53.98	672.3
610.0	24"	610	9.53	141.12	12.7	187.06	59.54	808.27

Barra y ángulo

Solera

Barra plana. Placa de unión, atiesador, tapa y aleta de louver.

Grados: ASTM A36
Largo: 6.10 m
Renglones: 71 en 1 tabla

Lo que manejamos · Poltech

Solera de acero

Buscar medida

Tramo de 6.10 m en acero A-36. La columna calculada es el peso teórico por sección y densidad; sirve para verificar.

Solera — 71 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Calculado kg/m
3.2 × 12.7	1/8" × 1/2"	0.32	0.32
3.2 × 19.0	1/8" × 3/4"	0.47	0.48
3.2 × 25.4	1/8" × 1"	0.63	0.64
3.2 × 31.8	1/8" × 1 1/4"	0.79	0.80
3.2 × 38.1	1/8" × 1 1/2"	0.95	0.96
3.2 × 50.8	1/8" × 2"	1.27	1.28
4.8 × 12.7	3/16" × 1/2"	0.47	0.48
4.8 × 19.0	3/16" × 3/4"	0.71	0.72
4.8 × 25.4	3/16" × 1"	0.95	0.96
4.8 × 31.8	3/16" × 1 1/4"	1.19	1.20
4.8 × 38.1	3/16" × 1 1/2"	1.42	1.44
4.8 × 50.8	3/16" × 2"	1.90	1.91
6.3 × 25.4	1/4" × 1"	1.27	1.26
6.3 × 31.8	1/4" × 1 1/4"	1.58	1.57
6.3 × 38.1	1/4" × 1 1/2"	1.90	1.88
6.3 × 50.8	1/4" × 2"	2.53	2.51
6.3 × 63.5	1/4" × 2 1/2"	3.17	3.14
6.3 × 76.2	1/4" × 3"	3.79	3.77
6.3 × 101.6	1/4" × 4"	5.06	5.02
6.3 × 127.0	1/4" × 5"	6.32	6.28
6.3 × 152.4	1/4" × 6"	7.59	7.54
6.3 × 203.2	1/4" × 8"	10.13	10.05
6.3 × 254.0	1/4" × 10"	12.66	12.56
6.3 × 304.8	1/4" × 12"	15.18	15.07
9.5 × 25.4	3/8" × 1"	1.90	1.89
9.5 × 31.8	3/8" × 1 1/4"	2.38	2.37
9.5 × 38.1	3/8" × 1 1/2"	2.84	2.84
9.5 × 50.8	3/8" × 2"	3.79	3.79
9.5 × 63.5	3/8" × 2 1/2"	4.75	4.74
9.5 × 76.2	3/8" × 3"	5.70	5.68
9.5 × 101.6	3/8" × 4"	7.59	7.58
9.5 × 127.0	3/8" × 5"	9.49	9.47
9.5 × 152.4	3/8" × 6"	11.4	11.37
9.5 × 203.2	3/8" × 8"	15.18	15.15
9.5 × 254.0	3/8" × 10"	18.99	18.94
9.5 × 304.8	3/8" × 12"	22.8	22.73
12.7 × 25.4	1/2" × 1"	2.53	2.53
12.7 × 38.1	1/2" × 1 1/2"	3.79	3.80
12.7 × 50.8	1/2" × 2"	5.06	5.06
12.7 × 63.5	1/2" × 2 1/2"	6.32	6.33
12.7 × 76.2	1/2" × 3"	7.59	7.60
12.7 × 101.6	1/2" × 4"	10.13	10.13
12.7 × 127.0	1/2" × 5"	12.66	12.66
12.7 × 152.4	1/2" × 6"	15.18	15.19
12.7 × 203.2	1/2" × 8"	20.24	20.26
12.7 × 254.0	1/2" × 10"	25.33	25.32
12.7 × 304.8	1/2" × 12"	30.36	30.39
15.9 × 76.2	5/8" × 3"	9.49	9.51
15.9 × 101.6	5/8" × 4"	12.66	12.68
15.9 × 127.0	5/8" × 5"	15.83	15.85
15.9 × 152.4	5/8" × 6"	18.99	19.02
15.9 × 203.2	5/8" × 8"	25.33	25.36
15.9 × 254.0	5/8" × 10"	31.66	31.7
15.9 × 304.8	5/8" × 12"	37.97	38.04
19.0 × 38.1	3/4" × 1 1/2"	5.70	5.68
19.0 × 50.8	3/4" × 2"	7.59	7.58
19.0 × 63.5	3/4" × 2 1/2"	9.49	9.47
19.0 × 76.2	3/4" × 3"	11.4	11.37
19.0 × 101.6	3/4" × 4"	15.18	15.15
19.0 × 127.0	3/4" × 5"	18.99	18.94
19.0 × 152.4	3/4" × 6"	22.8	22.73
19.0 × 203.2	3/4" × 8"	30.36	30.31
19.0 × 254.0	3/4" × 10"	37.97	37.88
19.0 × 304.8	3/4" × 12"	45.59	45.46
25.4 × 50.8	1" × 2"	10.13	10.13
25.4 × 76.2	1" × 3"	15.18	15.19
25.4 × 101.6	1" × 4"	20.27	20.26
25.4 × 152.4	1" × 6"	30.36	30.39
25.4 × 203.2	1" × 8"	40.53	40.52
25.4 × 254.0	1" × 10"	50.65	50.65
25.4 × 304.8	1" × 12"	60.71	60.77

Barra y ángulo

Redondo liso

Barra redonda maciza. Pasador, tirante y ancla.

Grados: ASTM A36
Largo: 6.10 m
Renglones: 12 en 1 tabla

Lo que manejamos · Poltech

Redondo de acero

Barra redonda maciza lisa. Medida en milímetros de diámetro.

Redondo liso — 12 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Calculado kg/m
9.5	3/8"	0.56	0.56
12.7	1/2"	0.99	0.99
15.9	5/8"	1.55	1.56
19.0	3/4"	2.24	2.23
22.2	7/8"	3.04	3.04
25.4	1"	3.98	3.98
28.6	1 1/8"	5.03	5.04
31.7	1 1/4"	6.21	6.20
38.1	1 1/2"	8.95	8.95
44.4	1 3/4"	12.18	12.15
50.8	2"	15.91	15.91
63.5	2 1/2"	24.85	24.86

Barra y ángulo

Cuadrado macizo

Barra cuadrada maciza. Herrería, reja y tope.

Grados: ASTM A36
Largo: 6.10 m
Renglones: 8 en 1 tabla

Lo que manejamos · Poltech

Cuadrado de acero

Barra cuadrada maciza. Medida en milímetros de lado.

Cuadrado macizo — 8 secciones con dimensiones y propiedades
Designación mm	pulg.	Peso kg/m	Calculado kg/m
9.5	3/8"	0.71	0.71
12.0	12 mm	1.20	1.13
12.7	1/2"	1.27	1.27
15.9	5/8"	1.98	1.98
19.0	3/4"	2.85	2.83
25.4	1"	5.06	5.06
38.1	1 1/2"	11.39	11.4
50.8	2"	20.25	20.26

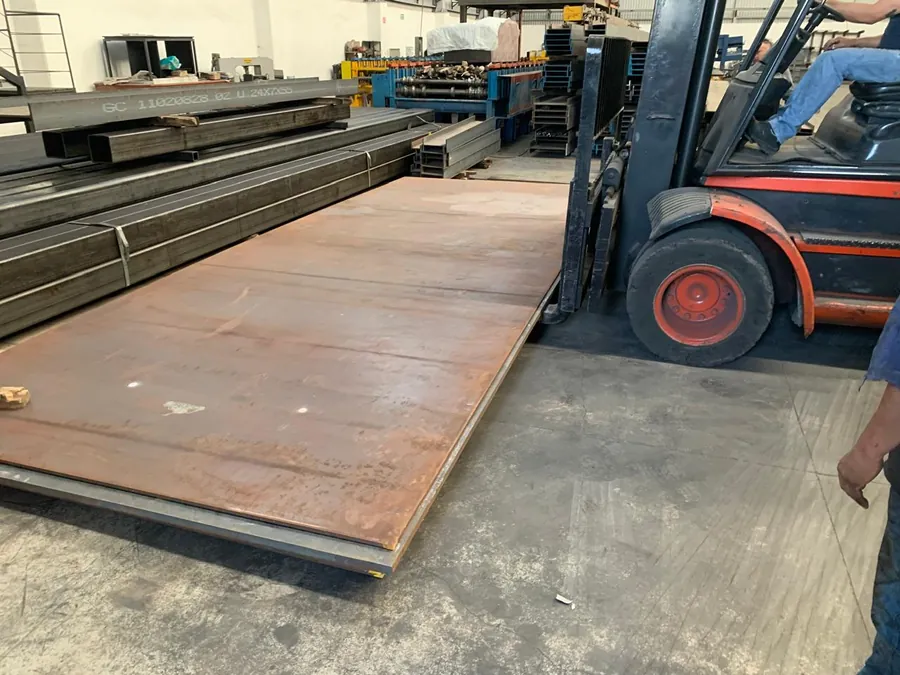

Acero plano

Placa

Base de columna, conexión y todo lo que sale del pantógrafo.

Grados: ASTM A36
Largo: Formatos de 3′×6′ a 10′×40′
Renglones: 37 en 2 tablas

Peso por placa entera · Poltech

Placa cortada y en formato comercial

Buscar medida

Peso por placa entera en cada formato comercial. El guion es formato que no se maneja en ese espesor.

Placa de acero — 28 secciones con dimensiones y propiedades
Espesor pulg. — mm	Peso kg/m²	3'x6' kg	3'x8' kg	3'x10' kg	4'x8' kg	4'x10' kg	5'x10' kg	5'x20' kg	6'x20' kg	6'x40' kg	8'x20' kg	8'x40' kg	10'x40' kg
3/16" — 4.8	37.35	—	84	105	112	140	176	351	421	—	562	1,123	—
1/4" — 6.4	49.79	—	112	140	150	187	234	468	562	—	749	1,498	—
5/16" — 7.9	62.24	—	140	176	187	234	293	585	702	—	936	—	—
3/8"– 9.5	74.69	—	168	211	225	281	351	702	842	1,685	1,123	2,246	2,808
7/16"– 11.1	87.14	—	—	246	—	—	—	—	983	—	—	—	—
1/2" — 12.7	99.59	—	225	281	300	374	468	936	1,123	2,246	1,498	2,995	3,744
9/16" — 14.3	112.04	—	—	316	—	—	—	—	1,264	—	—	—	—
5/8" — 15.9	124.49	211	281	351	374	468	585	1,170	1,404	2,808	1,872	3,744	4,680
3/4" — 19.1	149.38	253	337	421	449	562	702	1,404	1,685	3,370	2,246	4,493	5,616
7/8" — 22.2	174.38	—	—	491	—	—	—	—	1,966	—	2,621	—	—
1" — 25.4	199.18	337	449	562	599	749	936	1,872	2,246	4,493	2,995	5,990	7,488
1 1/8" — 28.6	224.07	—	—	632	—	—	—	—	2,527	—	3,370	6,739	—
1 1/4" — 31.8	251.88	—	562	702	749	936	1,170	2,340	2,808	5,616	3,744	7,488	—
1 3/8" — 34.9	277.06	—	—	—	—	—	—	—	—	—	4,118	—	—
1 1/2" — 38.1	302.25	—	674	842	899	1,123	1,404	2,808	3,370	—	4,493	8,986	—
1 5/8" — 41.3	327.44	—	—	—	—	—	—	—	—	—	4,867	—	—
1 3/4" — 44.5	348.56	—	—	983	—	—	1,872	—	3,931	—	5,242	—	—
2" — 50.8	398.36	—	899	1,123	1,198	1,498	—	3,744	4,493	—	5,990	11,981	—
2 1/4" — 57.2	448.15	—	—	1,264	—	1,685	—	—	5,054	—	6,739	—	—
2 1/2" — 63.5	497.95	—	—	1,404	—	1,872	—	—	5,616	—	7,488	—	—
2 3/4" — 69.8	554.12	—	—	—	—	—	—	—	—	—	8,237	—	—
3" — 76.2	597.54	—	—	1,685	—	2,246	—	—	6,739	—	8,986	—	—
3 1/2" — 88.9	697.13	—	—	—	—	—	—	6,552	7,935	—	10,483	—	—
4" — 101.6	796.72	—	—	—	—	—	—	7,488	9,069	—	11,981	—	—
4 1/2" — 114.3	906.75	—	—	—	—	—	—	—	—	—	13,478	—	—
5" — 127.0	1,007.5	—	—	—	—	—	—	—	—	—	14,976	—	—
5 1/2" — 139.7	1,108.25	—	—	—	—	—	—	—	12,355	—	16,474	—	—
6" — 152.4	1,209.2	—	—	—	—	—	—	—	13,478	—	—	—	—

Placa de rollo · Poltech

Placa rolada de rollo

Peso por placa entera en cada formato comercial. El guion es formato que no se maneja en ese espesor.

Placa de rollo — 9 secciones con dimensiones y propiedades
Espesor mm	pulg.	Peso kg/m²	3'×8' kg	3'×10' kg	4'×8' kg	4'×10' kg	5'×10' kg	5'×20' kg	6'×20' kg	8'×20' kg
4.8	3/16"	37.78	84	105	112	140	176	351	421	562
6.3	1/4"	50.38	112	140	150	187	234	468	562	749
7.9	5/16"	62.97	140	176	187	234	293	585	702	935
9.5	3/8"	75.56	168	211	225	281	351	702	842	1,123
11.1	7/16"	88.05	—	—	—	—	—	—	982	—
12.7	1/2"	100.75	225	281	300	374	468	936	1,123	1,498
14.3	9/16"	113.24	—	—	—	—	—	—	1,262	—
15.9	5/8"	125.94	281	351	374	468	585	1,170	1,404	1,872
19.0	3/4"	151.12	337	421	449	562	702	1,404	1,685	2,246

Acero plano

Lámina

Rolada en caliente, rolada en frío, antiderrapante y galvanizada.

Grados: ASTM A1011 · ASTM A1008 · ASTM A653
Largo: Hojas de 3′×8′ a 5′×20′
Renglones: 33 en 4 tablas

Rolada en caliente · Poltech

Lámina caliente

Peso por hoja entera en cada formato comercial.

Lámina rolada en caliente — 10 secciones con dimensiones y propiedades
Calibre	Espesor pulg. · mm	Peso kg/m²	3'×8' kg	3'×10' kg	4'×8' kg	4'×10' kg	5'×10' kg	5'×20' kg
Cal. 7	0.18" · 4.572 mm	36.26	80.87	101.09	107.83	134.78	—	—
Cal. 8	0.165" · 4.191 mm	33.25	74.13	92.66	98.84	123.55	154.44	308.88
Cal. 9	0.15" · 3.81 mm	30.23	67.39	84.24	89.86	112.32	—	—
Cal. 10	0.135" · 3.429 mm	27.2	60.65	75.82	80.87	101.09	126.36	252.72
Cal. 11	0.12" · 3.048 mm	24.18	53.91	67.39	71.88	89.86	112.32	224.64
Cal. 12	0.105" · 2.667 mm	21.16	47.17	58.97	62.9	78.62	98.28	196.56
Cal. 13	0.09" · 2.286 mm	18.14	40.44	50.54	53.91	67.39	—	—
Cal. 14	0.075" · 1.905 mm	15.11	33.7	42.12	44.93	56.16	70.2	140.4
Cal. 16	0.06" · 1.524 mm	12.09	26.96	33.7	35.94	44.93	—	—
Cal. 18	0.048" · 1.219 mm	9.67	—	—	28.75	35.94	—	—

Rolada en frío · Poltech

Lámina fría

Acabado liso, para fabricación y lámina a la vista.

Lámina rolada en frío — 9 secciones con dimensiones y propiedades
Calibre	Espesor pulg. · mm	Peso kg/m²	3'×8' kg	3'×10' kg	4'×8' kg	4'×10' kg
Cal. 11	0.12" · 3.048 mm	24.18	—	—	71.88	89.86
Cal. 12	0.105" · 2.667 mm	21.16	—	—	62.9	78.62
Cal. 14	0.075" · 1.905 mm	15.11	33.7	42.12	44.93	56.16
Cal. 16	0.06" · 1.524 mm	12.09	26.96	33.7	35.94	44.93
Cal. 18	0.048" · 1.219 mm	9.67	21.57	26.96	28.75	35.94
Cal. 20	0.036" · 0.914 mm	7.25	16.17	20.22	21.57	26.96
Cal. 22	0.03" · 0.762 mm	6.05	13.48	16.85	17.97	22.46
Cal. 24	0.024" · 0.61 mm	4.84	10.78	13.48	14.38	17.97
Cal. 26	0.019" · 0.493 mm	3.57	8.09	10.11	—	—

Antiderrapante · Poltech

Lámina con relieve

El kg/m² incluye el relieve, por eso pesa más que la lisa del mismo espesor.

Lámina antiderrapante — 7 secciones con dimensiones y propiedades
Calibre	Espesor pulg. · mm	Peso kg/m²	3'×10' kg	4'×10' kg
Cal. 16	0.06" · 1.524 mm	12.09	—	54
Cal. 14	0.075" · 1.905 mm	18.31	51.03	68.04
Cal. 12	0.105" · 2.667 mm	25.63	71.44	95.25
1/8"	0.125" · 3.175 mm	30.02	83.69	111.58
3/16"	0.188" · 4.775 mm	42.47	118.39	157.85
1/4"	0.25" · 6.35 mm	54.92	153.09	204.12
3/8"	0.375" · 9.525 mm	79.82	—	296.65

Galvanizada · Poltech

Lámina con recubrimiento de zinc

Para cubierta, ductos y fabricación a la intemperie.

Lámina galvanizada — 7 secciones con dimensiones y propiedades
Calibre	Espesor pulg. · mm	Peso kg/m²	3'×10' kg	4'×10' kg
Cal. 14	0.075" · 1.905 mm	15.11	33.7	42.12
Cal. 16	0.06" · 1.524 mm	12.09	26.96	33.7
Cal. 18	0.048" · 1.219 mm	9.67	21.57	26.96
Cal. 20	0.036" · 0.914 mm	7.25	16.17	20.22
Cal. 22	0.03" · 0.762 mm	6.05	13.48	16.85
Cal. 24	0.024" · 0.61 mm	4.84	10.78	13.48
Cal. 26	0.019" · 0.493 mm	3.57	8.09	10.11

Sobre estos datos

De dónde salen y qué no incluyen

Aquí conviven dos clases de tabla y conviene no confundirlas. Las del IMCA son propiedades de sección: lo que necesitas para diseñar, idéntico en cualquier proveedor del país. Las de Poltech son nuestro surtido: el calibre que manejamos, el largo en que llega, cuántas piezas trae el paquete y cuánto pesa la hoja entera. La primera no cambia; la segunda es la que te sirve para pedir.

Las tablas del IMCA se extrajeron de su catálogo de perfiles de acero, y cada fila se verificó contra su propia física con dos comprobaciones independientes: el peso por metro tiene que corresponder al área de la sección por la densidad del acero, y el radio de giro tiene que ser la raíz de I entre A. La fila que falla la segunda no se publica, porque significa que sus columnas no están donde suponemos.

Quedan fuera el perfil T rectangular y el I soldado: en el documento original su designación se parte en varias líneas y no podemos garantizar qué valor va en qué columna. Del ángulo de lados desiguales publicamos una de las dos tablas, porque el catálogo trae los mismos tamaños dos veces con propiedades distintas y no indica la orientación de cada una. Preferimos no publicarlos antes que publicarlos mal.

En la tabla de IPR vas a ver 105 secciones con el peralte en «—». No es un descuido: al extraer esa tabla del documento original sus columnas de dimensión quedaron recorridas una posición y el peralte no cayó en ninguna. El espesor de alma, el ancho de patín y el espesor de patín sí se pudieron confirmar contra la inercia del eje débil, que sólo depende de los patines, así que esos se publican. El peralte no lo publicamos inventado. Las propiedades de sección de esas filas nunca estuvieron en duda.

Todos son valores nominales, y el surtido es lo que manejamos de forma habitual: no es una promesa de existencia para hoy. Para diseño estructural usa el certificado de colada del material que te entregamos, y para pedir, confirma la medida con nosotros.

Cotizar material
